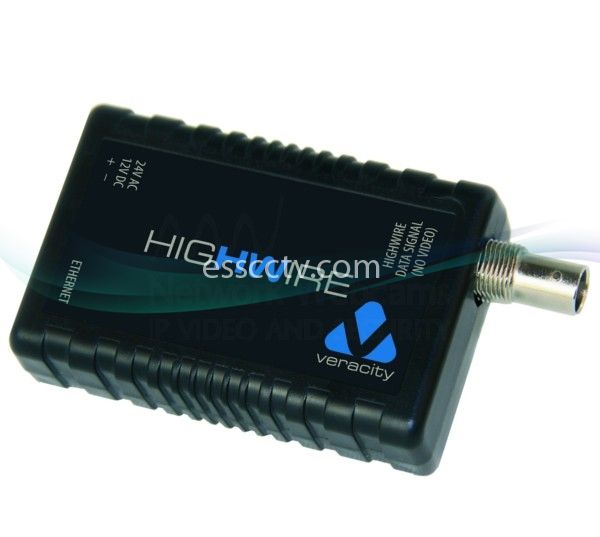

VERACITY VHW-HW HIGHWIRE IP cameras on Coax, High-Speed Ethernet Over Coax Video Cable

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for VERACITY VHW-HW HIGHWIRE IP cameras on Coax, High-Speed Ethernet Over Coax Video Cable: VHW-HW

Additional Image for VERACITY VHW-HW HIGHWIRE IP cameras on Coax, High-Speed Ethernet Over Coax Video Cable: Diagram

Model: VHW-HW
Item #: 807
Manufacturer: Veracity

MSRP: ~~$190.00~~
Our Price:

$115.00

(You save: $75.00)

* Two HIGHWIRE devices are required per link

* VHW-HW is a model with no PoE out.
The HIGHWIRE model with PoE out is available here:

VHW-HWPO

High-Speed Ethernet Over Coax Video Cable

HIGHWIRE turns any analogue video cable into a high-speed network connection. This allows the replacement of analogue cameras with IP cameras without installation of any new cabling, which can save some 30-40% of the system cost.

Universal connections for coax, network and power, with no user set-up required, make installation easy and fast.

Long connection range

HIGHWIRE can provide a full-duplex 100BASE-T network connection, with no bandwidth restrictions, over up to 500 metres (1650 feet) of RG-11 cable, or 280 metres (930 feet) of CCTV-grade RG-59 cable.

Simply connect a single HIGHWIRE to each end of the coaxial cable, and the link will be established automatically with no configuration required.

Transparent to the network

The HIGHWIRE connection is invisible to Ethernet data and requires no MAC or IP address; to the camera the link looks like any other network cable.

Speed, duplex and crossover are sensed on connection; no setting up is necessary.

Universal power input

HIGHWIRE can be powered by legacy 12 Volt DC or 24 Volt AC supplies. Connection is via a detachable screw terminal and the type and polarity of the supply are detected automatically.

An optional power supply is available for installations with no legacy power.

Practical installation

With absolutely no setting-up or configuration required, installation is simple, and HIGHWIREs compact dimensions allow it to be mounted inside a camera housing.

Optional wall-mounting brackets and a rack-mounting kit are available to suit the needs of each installation.

Range:

Auto-optimizing for all 75 Ohm coaxial cable:

280m (920ft) full-rate over video-grade RG-59 (Up to 350m depending on cable quality)

350m (1150ft) full-rate over RG-6

500m (1640ft) full-rate over RG-11

Network:

Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex

Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables

Power:

Auto type and polarity detection with detachable screw terminal connector

10-40V DC (max current 140mA at 12V)

20-28V AC (max current 70mA at 24V)

Dimensions:

84 x 54 x 24mm (3.3 x 2.1 x 0.95in) / 102mm (4in) including connector

70g (2.5oz)

IP Video

VHW-HW	HIGHWIRE Ethernet over coax converter (2 required per link)
VPSU-12V-U	Universal (UK/US/EU) 12VDC power supply for HIGHWIRE
VHW-WMB	Wall-mounting bracket for 1x HIGHWIRE
VHW-DMB	DIN Rail-mounting bracket for 1x HIGHWIRE
VHW-1U	1U Rack-mounting bracket for up to 8 x HIGHWIRE
VHW-RMPSU	Power supply for up to 8 x HIGHWIRE, complements VHW-1U
