Packing List
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.

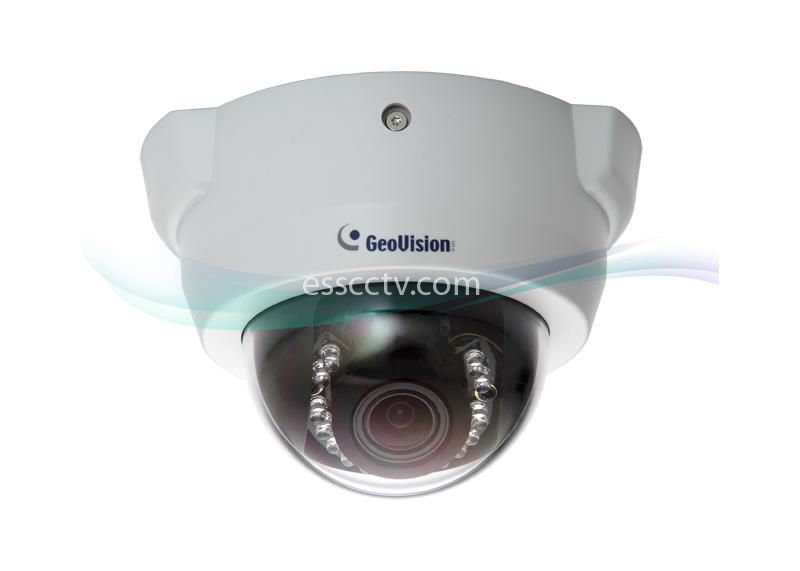

| Brand | Geovision |
| Model | GV-FD3410 |
| Image Sensor | 1/3.2” progressive scan CMOS |
| Megapixels | 3 MP |
| Minimum Illumination | 0.08 Lux at F/1.2 |
| Electronic Shutter Speed | Automatic, Manual (1/5 ~ 1/8000 sec.) |
| Day & Night | Yes(with removable IR‐cutfilter) |
| IR LED | 10 units up to 50 ft |
| Focus | Auto Focus |
| Motorized Lens | 3 ~ 9mm | F/1.2 |
| Zoom | 3x Optical |
| Video Compression | H.264 / MJPEG |
| Audio Compression | G.711 |
| Max. Image Resolution | 2048 (H) x 1536 (V) |
| WDR Pro | Yes |
| Frame Rate | 20 fps at 2048 x 1536 |
| Storage | Micro SDmemory card slot(SDHC / SDXC for Class 6 card or above) |
| Networking Protocols | HTTP,HTTPS, TCP,UDP, SMTP, FTP,DHCP,NTP,UPnP,DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP,QoS (DSCP),ONVIF (Profile S) |
| 3-Axis Adjustment | Yes |
| Audio | Supports two-way audio |
| Communication Interface | 1 RJ45 10M / 100M ethernet interface |
| TV-out | BNC connector(640 x 480 resolution) for spot monitor |
| Power Supply | DC12V / 24V AC / PoE |
| Power Consumption | 12 W |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F ) |
| Humidity | 10% to 90% (no condensation) |
| Vandal Resistance | IK7 |
| Dimensions | 6.1’’ x 4.33” |
| Weight | 1.28lbs |
| Warranty | 2 year manufacturer warranty |
