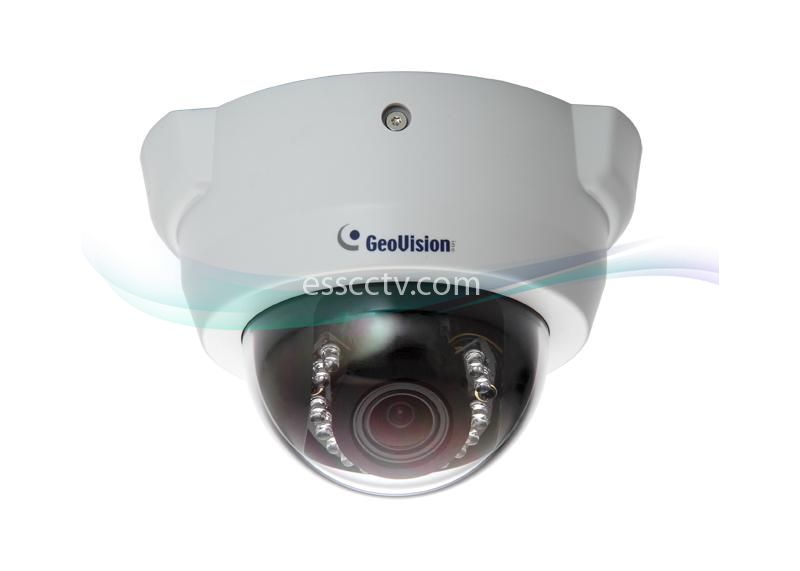

The GV-FD1500 is an indoor camera designed with 3-axis mechanism for easy and flexible installation. The camera is equipped with a Super Low Lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. With optional accessories, the camera can be installed on various types of locations including wall surface, wall corner, pole and ceiling.
Packing List
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
| Brand | Geovision |
| Model | GV-FD1500 |
| Image Sensor | 1.3 Megapixel Progressive Scan super low lux CMOS |
| Megapixels | 1.3 MP |
| Minimum Illumination | 0.01 Lux |
| Electronic Shutter Speed | Automatic , Manual (1/5 – 1/8000 sec.) |
| Day & Night | Yes (with removable IR-cut filter) |
| IR LED | 10 IR LEDs up to 98 feet |
| Lens | DC Drive 3 ~ 9 mm |
| Focus | Manual (w/lock) |
| Zoom | Manual (w/lock) |
| Video Compression | H.264, MJPEG |
| Audio Compression | G.711, AAC (Optional) |
| Max. Image Resolution | 1280 (H) x 1024 (V) |
| WDR | Yes |
| Frame Rate | 30 fps at 1280 x 1024 |
| Storage | MicroSD |
| Networking Protocols | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA |
| 3-Axis Adjustment | Yes |
| Audio | Supports two-way audio |
| Communication Interface | 10/100M Ethernet |
| TV-out | BNC connector(640 x 480 resolution) for spot monitor |
| Power Supply | 12V DC / 24V AC / PoE |
| Power Consumption | 12 W |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F ) |
| Humidity | 10% to 90% (no condensation) |
| Dimensions | 6.1’’ x 4.33” |
| Weight | 1.28 lb |
| Warranty | 2 Year Warranty |
