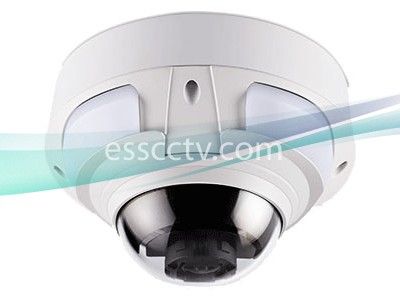

GV-VD5340 is an outdoor camera designed with IK10+ vandal resistance and IP67 ingress protection. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. This night vision is enhanced with its high power LEDs with up to 20 m (65.6 ft.) effective distance.
Packing List
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
| Brand | Geovision |
| Model | GV-VD5340 |
| Image Sensor | 1/2.5" progressive scan CMOS |
| Megapixels | 5 |
| Minimum Illumination | 0 Lux @ F/1.2 |
| Electronic Shutter Speed | Automatic , Manual (1/5 – 1/8000 sec.) |
| Day & Night | Yes (with removable IR-cut filter) |
| IR LED | 6 up to 65.6 ft |
| Focus | Auto Focus |
| Motorized Lens | Motorized varifocal lens |
| Zoom | 3x Optical (3.3 - 9mm) |
| Video Compression | H.264 / MJPEG |
| Audio Compression | G.711, AAC (Optional) |
| Max. Image Resolution | 2560 (H) x 1920 (V) |
| WDR | Yes |
| Frame Rate | 10 fps at 2560 x 1920 |
| Storage | Micro SD/SDHC memory card slot |
| Networking Protocols | DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA |
| 3-Axis Adjustment | Yes |
| Audio | 2 way |
| Communication Interface | 1 RJ45 10M / 100M ethernet interface |
| TV-out | Yes |
| Power Supply | DC12V / AC24V / PoE (IEEE 802.3at) |
| Power Consumption | 22.48 W |
| Operating Temperature | -20 °C ~ 50 °C / -4 °F ~ 122 °F |
| Humidity | 10% to 90% (no condensation) |
| IP Rating | IP67 |
| Vandal Resistance | IK10+ |
| Dimensions | 6.9’’ x 4.6’ |
| Weight | 4.03 lb |
| Warranty | 2 Years Warranty |
