Packing List
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
Brand | Geovision |

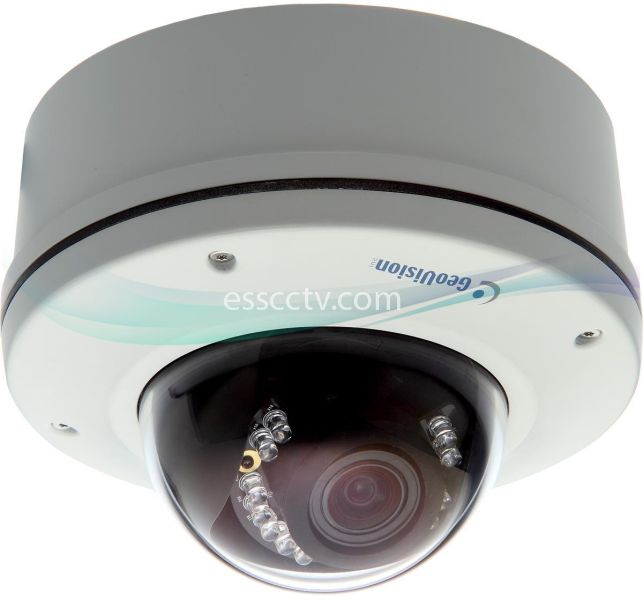

Model | GV-VD-3400 |
Image Sensor | 1/3.2” progressive scan CMOS |
Megapixels | 3 MP |
Minimum Illumination | Color 0.08 Lux, B/W 0.05 Lux, IR ON 0 Lux |
Electronic Shutter Speed | Automatic , Manual (1/5 – 1/8000 sec.) |
Day & Night | Yes (with removable IR-cut filter) |
IR LED | 10 IR LEDs up to 100 feet |
Focus | Manual (w/lock) |
Lens | 3~9 mm / f1.2 |
Zoom | Manual (w/lock) |
Video Compression | H.264 / MJPEG |
Audio Compression | G.711 |
Max. Image Resolution | 2048 (H) x 1536 (V) |
WDR Pro | Yes |
Frame Rate | 20 fps at 2048 x 1536 |
Storage | Micro SD/SDHC memory card slot |
Networking Protocols | HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) |
Audio | 1 in 1 out |
Communication Interface | 10/100 Ethernet |
TV-out | BNC connector(640 x 480 resolution) for spot monitor |
Power Supply | 12V DC / 24V AC / PoE |
Power Consumption | 12 W |
Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
Humidity | 10% to 90% (no condensation) |
IP Rating | IP67 |
Vandal Resistance | IK10+ |
Dimensions | 6.49 x 4.92 in |
Weight | 3.75 lb |
Warranty | 2 Year Warranty |
