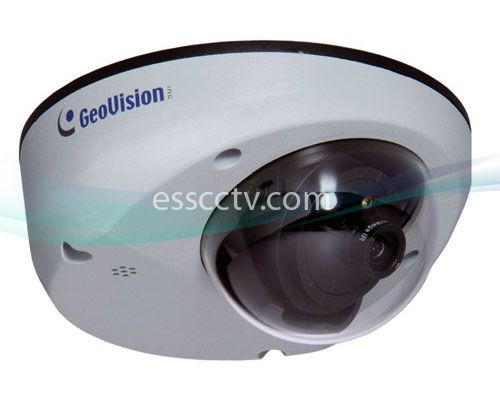

GEOVISION GV-MDR3400 IP Network Mini Rugged Outdoor Dome Camera 3 Megapixel, Low Lux, PoE
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
GV-MDR3400
Item #: 976
Manufacturer: GeoVision
MSRP:
$670.00
Our Price:
$395.00
(You save: $275.00)
- 1/3.2" progressive scan CMOS
- Dual streams from H.264 and MJPEG
- Up to 20 fps at 2048 x 1536
- Day and night function (electronic)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- EN50155 compliance for rolling stock applications
- Wide temperature tolerance (-30 °C ~ 50 °C / -22 °F ~ 122 °F)
- 3-axis mechanism:
pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
- Built-in microphone
- Built-in micro SD card slot (SD/SDHC) for local storage
- NAS Recording
- Recording assigned by GV-Edge Recording Manager (Windows, Macversion)
- PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF conformant
Packing List
- Mini Fixed Rugged Dome with 2 options for its LAN connector (connector for motor vehicles or for general use)
- Torx Wrench
- Self Tapping Screw x 2
- Screw Anchor x 2
- Cable stopper
- Cable Connector
- Installation sticker
- Silica gel bag x 2
- Ferrite core for vehicle installation
- Adhesive tape x 2
- GV-IPCAM H.264 Quick Start Guide
- GV-IPCAM H.264 Software DVD
- GV-NVR Quick Start Guide
- GV-NVR Software DVD
|
| |
| Note: Specifications are subject to change without notice. |
| Geovision |
| Model |
GV-MDR3400-1F |
| Image Sensor |
1/3.2" progressive scan WDR Pro CMOS |
| Megapixels |
3MP |
| Minimum Illumination |
0.08 Lux Color; 0.05 Lux B/W |
| Electronic Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec.) |
| Day & Night |
Yes |
| Focus |
Fixed |
| Lens |
2.8 mm |
| Zoom |
Fixed |
| Video Compression |
H.264 / MJPEG |
| Audio Compression |
G.711, AAC (optional) |
| Max. Image Resolution |
2048 (H) x 1536 (V) |
| WDR Pro |
Yes |
| Frame Rate |
20 fps at 2048 x 1536 |
| Storage |
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) |
| Networking Protocols |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) |
| Audio |
1 way |
| Communication Interface |
1 RJ45 10M / 100M ethernet interface |
| Power Supply |
PoE (IEEE802.3af) ONLY |
| Power Consumption |
4.28 Max |
| Operating Temperature |
‐30 °C ~ 50 °C (‐22 °F ~ 122 °F) |
| Humidity |
10% to 90% (no condensation) |
| IP Rating |
IP67 |
| Vandal Resistance |
IK10 |
| Dimensions |
ø 4.53" x 2.33" |
| Weight |
1.3 lb |
