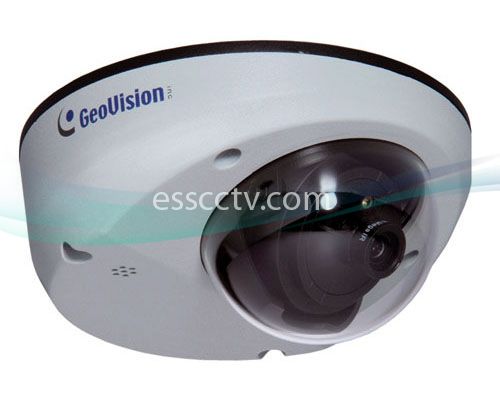

GEOVISION GV-MDR1500 IP Network Mini Rugged Outdoor Dome Camera 1.3 Megapixel, Super Low Lux, PoE
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
GV-MDR1500
Item #: 974
Manufacturer: GeoVision
MSRP:
$460.00
Our Price:
$320.00
(You save: $140.00)
The GV-MDR1500 Series is an outdoor, fixed, mini-sized network camera with different lens options. With its super low lux CMOS image sensor, the camera can produce color image at near darkness. The camera conforms to IK10 and IP67 standards. It is adjustable in 3 axis (pan, tilt and rotate) and can be connected through PoE.
- 1/3" progressive scan super low lux CMOS
- Min. illumination at 0.01 lux
- Dual streams from H.264 and MJPEG
- Up to 30 fps at 1280 x 1024
- Day and night function (electronic)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- EN50155 compliance for rolling stock applications
- Wide temperature tolerance (-30 °C ~ 50 °C / -22 °F ~ 122 °F)
- 3-axis mechanism:
pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
- Built-in microphone
- Built-in micro SD card slot (SD/SDHC) for local storage
- Wide Dynamic Range (WDR)
- 3D DNR (Digital Noise Reduction)
- Defog
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- IP address filtering
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- ONVIF conformant
- older model : GV-MDR120
Packing List
- Mini Fixed Rugged Dome with 2 options for its LAN connector (connector for motor vehicles or for general use)
- Torx Wrench
- Self Tapping Screw x 2
- Screw Anchor x 2
- Cable stopper
- Cable Connector
- Installation sticker
- Silica gel bag x 2
- Ferrite core for vehicle installation
- Adhesive tape x 2
- GV-IPCAM H.264 Quick Start Guide
- GV-IPCAM H.264 Software DVD
- GV-NVR Quick Start Guide
- GV-NVR Software DVD
|
Note: Specifications are subject to change without notice. |
Brand |
Geovision |
Model |
GV-MDR120 |
Image Sensor |
1/3" progressive scan CMOS |
Megapixels |
1.3 MP |
Resolution |
1280 (H) x 1024 (V) |
Minimum Illumination |
0.01 Lux |
Electronic Shutter Speed |
Automatic , Manual (1/5 – 1/8000 sec.) |
Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
Day & Night |
Electronic |
IR LED |
Non-IR |
White Balance |
Automatic, Manual (2800K ~ 8500K) |
Lens |
3.8 mm |
Video |
H.264, MPEG4 and MJPEG / 30 fps at 1280 x 1024 |
Audio |
Built-in microphone |
Network |
10/100 Ethernet |
WDR |
Yes |
WDR Pro |
No |
Network Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
Local Storage |
Micro SD/SDHC memory card slot (for Class 6 card or above) |
Operating Temperature |
-20 °C ~ 50 °C / -4 °F ~ 122 °F |
POE |
IEEE 802.3af Power over Ethernet / PSE |
Power Source |
POE |
Power Consumption |
3.7 W |
Dimension |
4.5 x 2.3 in |
Weight |
1.3 lb |
IP Rating |
IP67 |
Vandal Resistance |
IK10 |
Warranty |
2 year manufacturer warranty |
