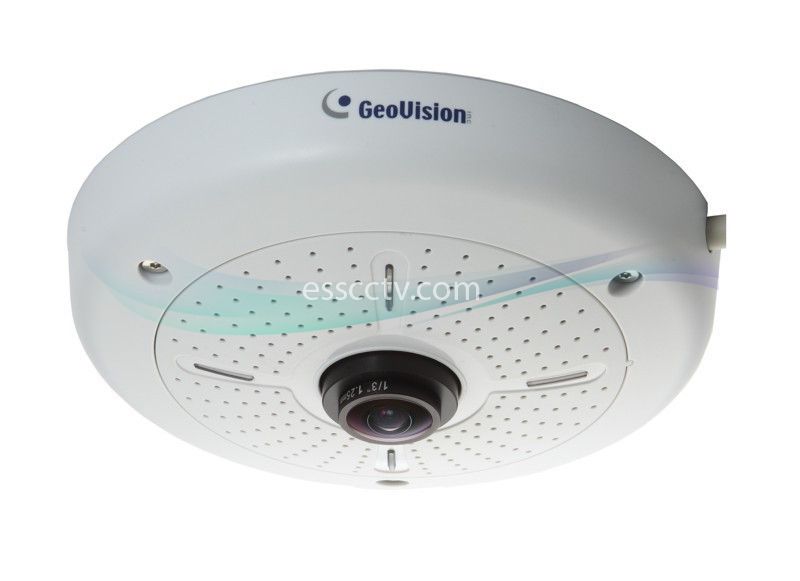

GEOVISION 4 Megapixel Network IP Camera: Hemispheric, Fish Eye, Virtual PTZ, H.264

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GEOVISION 4 Megapixel Network IP Camera: Hemispheric, Fish Eye, Virtual PTZ, H.264: GV-FE4301

Additional Image for GEOVISION 4 Megapixel Network IP Camera: Hemispheric, Fish Eye, Virtual PTZ, H.264:

Additional Image for GEOVISION 4 Megapixel Network IP Camera: Hemispheric, Fish Eye, Virtual PTZ, H.264: In-Ceiling Mount

Additional Image for GEOVISION 4 Megapixel Network IP Camera: Hemispheric, Fish Eye, Virtual PTZ, H.264: Drawing - Hard Ceiling

Additional Image for GEOVISION 4 Megapixel Network IP Camera: Hemispheric, Fish Eye, Virtual PTZ, H.264: Drawing - In-Ceiling

Model: GV-FE4301
Item #: 964
Manufacturer: GeoVision

MSRP: ~~$750.00~~
Our Price:

$519.00

(You save: $231.00)

The GV-FE4301 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.

Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE4301 seamlessly integrates with the GV-System, providing advanced monitoring and video management features.

The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FE4301 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE4301 to be mounted into the ceiling, revealing a small portion of the camera.

4MP progressive scan CMOS

Up to 15 fps at 2048 x1944 for GV-FE4301

H.264 and MJPEG

Electronic Day/Night function

Wide Dynamic Range (WDR)

Provides 360 and 180 degrees panorama view

No mechanical moving parts

Built-in micro SD card slot (SD/SDHC) for local storage

Virtual PTZ function

Auto Pan function

Built-in Web server for monitoring through IE browser

Different angle of view accessible by multiple users at the same time

Built-in microphone and speaker

One sensor input and alarm output

DC 12V / AC 24V / PoE

Playback from any view angle and zoom level

Privacy mask to cover parts of the image that should not be viewable

Visual automation

Tampering alarm

Text overlay

31 languages on Web interface

ONVIF conformant

System Requirements
OS		32 bit: Windows XP / Vista / 7 / Server 2008 64 bit: Windows 7 / Server 2008
GV-System Version		GV-System v8.5.6 with patch or later
Browser		Internet Explorer 7.x or later
Camera
Image Sensor		1/2.5" progressive scan CMOS
Picture Elements		2048 (H) x 1944 (V),1440 (H) x 1376 (V)
Minimum Illumination		color: 0.15 lux, b/w: 0.10 lux
Shutter Speed		Automatic , Manual (1/5 ‐ 1/8000 sec)
White Balance		Automatic, Manual (2800K~8500K)
Gain Control		Automatic
S/N Ratio		45 dB
Lens
Megapixel		Yes
Day/Night		Yes (electronic)
Iris		Fixed Iris
Focal Length		1.05mm
Maximum Aperture		F/2.8
Mount		M12, Pitch 0.5mm
Image Format		1/2"
Operation		Focus: Fixed, Zoom: Fixed, Iris: Fixed
Operation
Video Compression		H.264, MJPEG
Video Streaming		Single stream from H.264 or MJPEG
Frame Rate		15 fps *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker‐less, Backlight Compensation, Image Orientation, Shutter Speed, Day / Night, WDR, Defog
Audio Compression		G.711, AAC (optional)
Audio Support		Two-Way Audio
Sensor Input		1 Digital Input (Dry Contact)
Alarm Output		1 Digital Output
Network
Interface		10/100 Ethernet
Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Lens Mounting		M12, Pitch 0.5mm / 0.02 in
Temperature Detector		Yes
Connectors	Power	Terminal block (3 pin ), PoE
	Ethernet	Ethernet (10/100 Base‐T), RJ‐45 Connector
	Audio	Built‐in microphone and speaker
	Digital I/O	I/O wire
	Auto Iris	none
	Local Storage	Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) * SDXC and UHS‐I card types are not supported.
	TV-Out	none
General
Operating Temperature		0°C ~ 50°C / 32°F ~ 122°F
Humidity		10% to 90% (no condensation)
Power Source		12V DC / 24V AC / PoE (IEEE802.3af)
Max. Power Consumption		5 W
Dimensions		Camera Body: hard-ceiling: 160 x 47.66 mm (6.30 x 1.88 in), in-ceiling: 164 x 47.66 mm (6.46 x 1.88 in) Cable Length: 1m / 3.28 ft Cable Diameter: 8mm / 0.31 in Maximum Connector Diameter: 28.5mm / 1.12 in
Weight		650g / 1.43 lb
Regulatory		CE, FCC, C‐Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type		End-Span
PoE Power Output		Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Auto Pan Function, Virtual PTZ, Motion Detection, Wide Angle Lens Dewarping, Text Overlay, Digital PTZ
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage		GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server
Live Viewing		IE,mobile phone
CMS Server support		GV‐Control Center, GV‐Center V2, GV‐VSM

Note:
1. Specifications are subject to change without notice.
2. Mind the following when using a memory card for recording:

Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No guarantee is provided for such causes.
To avoid power outage, it is highly suggested to apply a battery backup (UPS).
For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.

Packing List
1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In‐Ceiling Mount)
6. Screw (In‐Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
