XIR-1202-W HD-SDI outdoor bullet IR security camera, 2 MP 1080p, 3.6mm Megapixel Lens, 24 IR LED

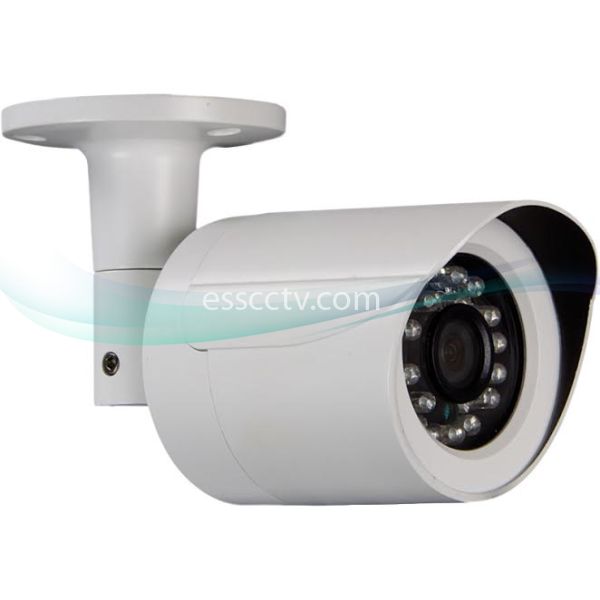

Images are for illustration purpose and may not show the actual product.
Model:
XIR-1202-W
Item #: 784
MSRP:
$100.00
Our Price:
$72.00
(You save: $28.00)
- 1/2.8" Megapixel Sensor
- HD-SDI (1080p) High resolution
- HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 24 pcs)
- True Day & Night(ICR)
- Easy installation
- IP66 Weather-Resistant Body
- 3.6mm 3-Megapixel Fixed lens
- 12V DC
- HD-SDI cameras require HD-SDI system and RG59/6 cables
What is the benefit of HD-SDI cameras?
HD-SDI stands for High-Definition Serial Digital Interface.
HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.
Actual Image Recorded
Digital Zoom on above image 1
Digital Zoom on above image 2
| Solution |
1/2.8" Mega Pixel Sensor |
| Signal System |
PAL/NTSC |
| Sync. System |
Internal Sync. |
| Effective Pixels |
2.0 Mega Pixels |
| Sensing Area |
S.42mm × 3.41 mm |
| Horizontal Resolution |
PAL:1920×1080P 2SF/S
NTSC: 1920×1O8OP 30F/S |
| Video Output |
1.0Vp-p75Ω |
| S/N Ratio |
More than 50dB (AGC OFF) |
| White Balance |
Auto Tracking White Balance |
| Shutter Speed |
1/25-1/50000 |
| Infrared Lamps |
Night/Day ON/OFF |
| Minimum Illumination |
0 Lux(lnfrared Lamps Turn on) |
| Infrared Wavelength |
850nm |
| IR Leds |
24 Pcs |
| Built-In Lens |
3.6mm 3 Mega Pixel Lens |
| Working Temperature |
-10°C-5O°C |
| Storage Temperature |
-20°C-5O°C |
| Power Requirement |
DC12V |
