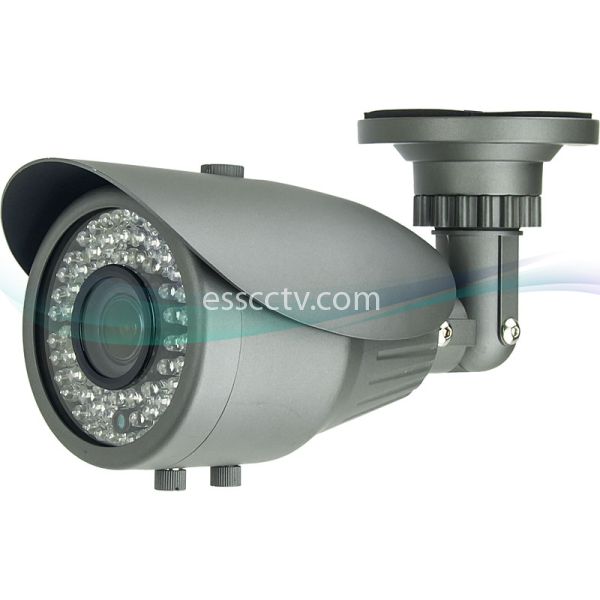

HD-SDI outdoor bullet IR security camera, 1080p 2 Megapixel, 2.8-12mm, 72 IR LED
Images are for illustration purpose and may not show the actual product.
Model:
XIR 1702V
Item #: 783
MSRP:
$200.00
Our Price:
$130.00
(You save: $70.00)
This Model has been discontinued.
Please follow the link for our recommended replacement: XIR-1712V
- 1/2.8" Megapixel Sensor
- HD-SDI (1080p) High resolution
- HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 72 pcs)
- True Day & Night(ICR)
- Easy installation
- IP66 Weather-Resistant Body
- 2.8-12mm 3 Megapixel lens, External Lens control
- Dual output(HD-SDI/Analog)
- 3D-DNR
- 12V DC
- HD-SDI cameras require HD-SDI system and RG59/6 cables
What is the benefit of HD-SDI cameras?
HD-SDI stands for High-Definition Serial Digital Interface.
HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.
Actual Image Recorded
Digital Zoom on above image 1
Digital Zoom on above image 2
| Solution |
1/2.8" Mega Pixel Sensor |
| Signal System |
PAL/NTSC |
| Sync. System |
Internal Sync. |
| Effective Pixels |
2.0 Mega Pixels |
| Sensing Area |
5.42mm × 3.41mm |
| Horizontal Resolution |
PAL : 1920×1080P 25F/S
NTSC : 1920×1080P 30F/S |
| Video Output |
1.0Vp~p75Ω |
| S/N Ratio |
More than 50dB (AGC OFF) |
| White Balance |
Auto Tracking white Balance |
| Shutter Speed |
1/25-1/50000 |
| Infrared Lamps |
Night/Day ON/OFF |
| Minimum Illumination |
0 Lux(Infrared Lamps Turn on) |
| Infrared Wavelength |
850nm |
| IR LEDs |
72 Pcs |
| Built-in Lens |
2.8~12mm 3Mega-pixel Lens |
| Working Temperature |
-10°C~50°C |
| Storage Temperature |
-20°C~60°C |
| Power Requirement |
DC12V, Max Power Consumption Less Than 5W
(when the infrared lamps turn on) |
