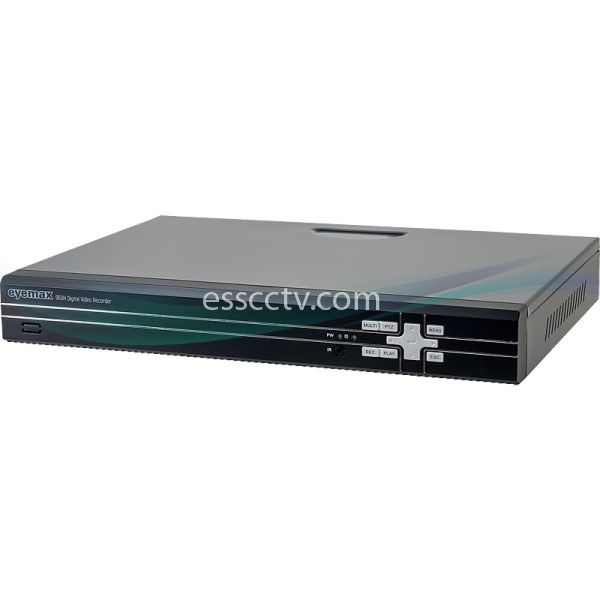

EYEMAX HT series DVR system, 16ch video , 480 FPS real-time 960H record, HDMI
Model:
DVST HT-960H-16
Item #: 777
Manufacturer: Eyemax
MSRP:
$650.00
Our Price:
$298.00
(You save: $352.00)
- This Model has been discontinued.
Please follow the link for our recommended replacement: DS-PT960-16
- Adopted the stable Embedded Linux
- Stable file system recovery even after power supply is disconnected from a power outage.
- Realized small file size and high video quality by applying the H.264.
- Supports up to 2TB HDD
- Supports e-SATA port to use additional external hard disk.
- Real time recording
- Maximum of 480 IPS @ D1(720 × 480)/960H(960 × 480) at NTSC
- Maximum of 400 IPS @ D1(720 × 480)/960H(960 × 480) at PAL
- Supports various recording resolutions and qualities.
- 960H(944×480), D1(704×480), Half D1(704×240), CIF(352×240) / NTSC
- 960H(944×576), D1(704×576), Half D1(704×288), CIF(352×288) / PAL
- 5 stage recording qualities (Very high, high, normal, low, and very low).
- Easy operation through various user interface and user friendly GUI system.
- Realized powerful multi-function.
- Real time video display and recording, network transmission and back up can be performed simultaneously.
- transmission
- Easy search functions.
- Date/Time search (Calendar search), event search
- Recording before event. (Can be 5 seconds).
- Recording after event. (Can be only up 10 seconds).
- The operating condition pre-check function according to the change in motion detection and movement detection
- Can set recording quality and number of recording frames per seconds.
- Powerful recording schedule management.
- Complete synchronization of video/audio.
- Easy software upgrading through USB storage device or network.
- Maximum of 4 clients can be connected to 1 DVR at the same time.
- Bandwidth setting is automatically set depending on the network speed connected to this device.
- Remote alarm notification via e-Mail.
- PTZ (Pen/Tilt/Zoom) operation.
- Remote control operation
- Key board control operation (optional)
- Supporting Daylight saving
- Simultaneous output to VGA and BNC
- Remote view on mobile phones: iPhone and Android
- 960H DVR works best with 960H/1280H cameras (700+ TV lines)
| OPERATING SYSTEM |
Embedded Linux |
| COMPRESSION |
H.264 HARDWARE CODEC |
| MULTIPLEX FUNCTION |
Live, Record, Backup and Network at the same time |
| RECORDING RESOLUTION |
960H, D1, Half D1, CIF |
| RECORDING SPEED |
480fps(NTSC), 400fps(PAL) at 960H |
| VIDEO INPUT |
16 BNC Composite |
| VIDEO OUTPUT |
1 HD OUT, 1 VGA, 1 BNC |
| AUDIO INPUT/OUTPUT |
16ch / 1ch |
| SENSOR INPUT / ALARM OUTPUT |
Optional item - 4 line(NC/NO selectable)/ 1 line(NC/NO selectable) |
| Display Mode |
1/4/9/13/16/Auto |
| BACKUP MEDIA |
USB storage, Network |
| STORAGE MEDIA |
2 SATA HDD |
| RECORDING MODE |
Continuous, Alarm, Motion, Instant panic |
| OPERATION CONTROL |
Mouse and Remote controller |
| COMMUNICATION PORT |
RS-485 |
| NETWORK |
LAN(Ethernet RJ-45, 10/100/1000 base), DDNS, TCP/IP |
| SIZE(mm) |
375(W) × 272(D) × 50(H) |
| WEIGHT |
2.6Kg |
| POWER |
DC12V/4A Adaptor |
| POWER CONSUMPTION |
Max. 25W |
| OPERATING TEMPERATURE |
0°C ~ 40°C |
| OPERATING HUMIDITY |
0% RH ~ 80% RH |
