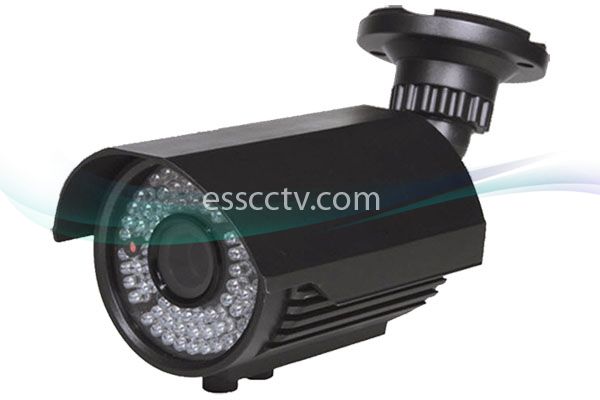

1.3 Megapixel 1000 TVL 720p Bullet IR Camera, 42 IR LED, 2.8~12mm Lens, OSD
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
EIR-138D40
Item #: 745
MSRP:
$159.00
Our Price:
$79.00
(You save: $80.00)
This Model has been discontinued.
Please follow the link for our recommended replacement: TIR-0412V
- 1/3" SONY CMOS
- 1.3 Megapixel Image
- 1000 TV Lines of Resolution (HD 720p)
- 0.01 Lux (0 Lux with IR LED on)
- 42 IR LEDs, up to 130 FT IR range
- 2.8~12mm adjustable Lens
- External Lens Adjustment Knobs (Zoom and Focus)
- Weather-Resistant Case with Sun-Visor
- True Day/Night with ICR
- 3DNR: Digital Noise Reduction
- OSD control: Easy access to OSD control via external joystick
- 12V DC power
- 1000 TVL cameras work best with 960H/1280H Analog DVRs
| Pick Up Element |
1/3" SONY CMOS |
| Effective Picture Elements (HxV) |
1280 x 720 |
| Horizontal Resolution |
1000 TV Lines (720p) |
| Minimum Illumination |
0.01 lux (0 lux with IR LED on) |
| S/N Ratio |
52 dB |
| Scanning System |
2:1 Interface |
| Synchronous System |
Internal, Negative Sync. |
| Auto Electronic Shutter |
NTSC: 1/60s~1/100,000s |
| Gamma Characteristic |
0.45 |
| IR Distance |
40 meters (with 42 Infrared LED) |
| IR Status |
Under 10 lux by CDS |
| IR Power On |
CDS AUTO Control |
| Video Ouput |
1Vpp, 75Ω |
| Auto Gain Control |
Auto |
| Power |
DC12V (±10%), 700mA |
| Lens |
2.8~12mm Manual Zoom Lens |
| Dimension |
207 x 184 x 83 (WxHxD) |
| Weight |
1400g |
| Storage Temperature |
-30~60 °C, RH95% Max |
| Operating Temperature |
-10~45 °C, RH95% Max |
