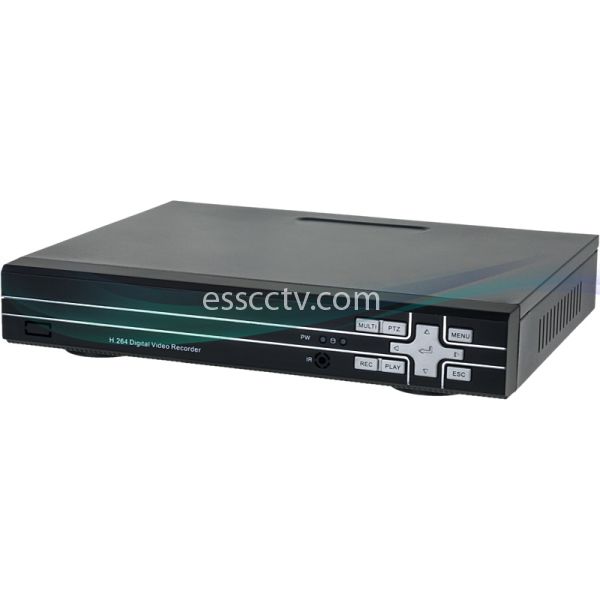

EYEMAX HT series DVR system, 4ch video , 120 FPS real-time 960H record, HDMI
Model:
DVST HT-960H-04
Item #: 705
Manufacturer: Eyemax
MSRP:
$293.00
Our Price:
$159.00
(You save: $134.00)
- Adopted the stable Embedded Linux
- Stable file system recovery even after power supply is disconnected from a power outage.
- Realized small file size and high video quality by applying the H.264.
- Supports up to 2TB HDD
- Supports e-SATA port to use additional external hard disk.
- Real time recording
- Maximum of 120 IPS @ D1(720 × 480)/960H(960 × 480) at NTSC
- Maximum of 100 IPS @ D1(720 × 480)/960H(960 × 480) at PAL
- Supports various recording resolutions and qualities.
- 960H(944×480), D1(704×480), Half D1(704×240), CIF(352×240) / NTSC
- 960H(944×576), D1(704×576), Half D1(704×288), CIF(352×288) / PAL
- 5 stage recording qualities (Very high, high, normal, low, and very low).
- Easy operation through various user interface and user friendly GUI system.
- Realized powerful multi-function.
- Real time video display and recording, network transmission and back up can be performed simultaneously.
- Easy search functions.
- Date/Time search (Calendar search), event search
- Recording before event. (Can be 5 seconds).
- Recording after event. (Can be only up 10 seconds).
- The operating condition pre-check function according to the change in motion detection and movement detection
- Can set recording quality and number of recording frames per seconds.
- Powerful recording schedule management.
- Complete synchronization of video/audio.
- Easy software upgrading through USB storage device or network.
- Maximum of 4 clients can be connected to 1 DVR at the same time.
- Bandwidth setting is automatically set depending on the network speed connected to this device.
- Remote alarm notification via e-Mail.
- PTZ (Pen/Tilt/Zoom) operation.
- Remote control operation
- Key board control operation (optional)
- Supporting Daylight saving
- Simultaneous output to VGA and BNC
- Remote view on mobile phones: iPhone and Android
- 960H DVR works best with 960H/1280H cameras (700+ TV lines)
| Specifications |
D1/960H realtime 4CH |
| Operating System |
Embedded LINUX |
| System Resources |
Live, Recording, Playback, Backup, Remote access |
| Video Input |
4 channel |
| Video Output |
1 HDMI, 1 VGA, 1 BNC |
| Audio Input |
2 Channel |
| Audio Output |
1 Channel(HDMI, BNC) |
| Bidirectional Talk |
1 Channel Input, 1 Channel Output |
| Resolution |
1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Screen Division |
1 / 4 |
| Operation Control |
Mouse, Remote controller |
| Recording Mode |
Continuous, Motion, Event, Schedule |
| Storage Media |
Internal HDD × 1EA |
| Back Up |
USB / Network |
| Alarm Input / Output |
N/A |
| PTZ |
RS485 |
| USB |
2 USB 2.0 High-speed interface |
| Ethernet |
RJ-45 port(10/100M) |
| Display Speed |
Max 120 fps@D1(720×480)/960H(960×480) |
| Recording Speed |
Max 120 fps@D1(720×480)/960H(960×480) |
| Video Codec |
H.264 Base profile |
| Audio Codec |
G.711 ADPCM |
| Client |
Smart Phone Application(iSmartViewer), CMS(ICENS), Web Viewer-IE/Mac OS/Chrome/FireFox |
| Power Source |
12V/2A Adaptor |
| Operation Temperature |
0°C ~ 40°C |
| Operation Humidity |
0%RH ~ 80%RH |
| Dimension (W×D×H mm) |
260 × 210 × 42mm |
| Weight |
2Kg |
