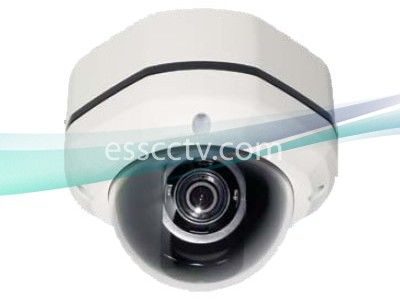

Eyemax DT 602V-M Hammer Dome Camera: 620 TVL, 2.8~12mm, 2D DNR, IP 68
Images are for illustration purpose and may not show the actual product.
Model:
DT 602V-M
Item #: 70
Manufacturer: Eyemax
MSRP:
$179.00
Our Price:
$102.00
(You save: $77.00)
- HAMMER® series camera : IP-68 Water & Vandal-proof
- Easy Twist and Lock Installation : No drilling thru camera required (Drill hole guide included)
- 3-Axis Construction : By adjusting '3-Axis' control, you get a straight view regardless whether camera is installed on a wall or ceiling
- 1/3" Sony Super HAD II color CCD sensor
- High Resolution - 620 (H) TV Line in Color
- Minimum Illumination - 0.1 Lux (Color) / 0.01 Lux (B/W)
- 2.8~12mm Auto-Iris Zoom Lens Installed
- OSD (On Screen Display) - Easy camera setup
- 2DDNR (2D Digital Noise Reduction) - less noise clear image quality at night
- DC 12V only
 |
High-Res 620 TV Line
The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
 |
2D DNR (2D DIGITAL NOISE REDUCTION)
Improved S/N ratio 50dB and more sharp and noiseless low light image quality provided by built-in noise reduction (2DDNR: 2D Digital Noise Reduction) function. |
| |
OSD CAMERA SETUP
It has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera. |
| |
3-AXIS DOME CONSTRUCTION
Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need |
| 620 TV Line |
| 1/3 inch Sony Super HAD II CCD |
| 811(H) x 508(V) 410K pixels (NTSC) |
| 768(H) x 494(V) 380K pixels (NTSC) |
| 2:1 Interface |
| More than 50 dB (AGC Off) |
| Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) |
| CVBS : 1.0 Vp-p Comp. 75Ω |
| 0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W) |
| ATW1 / ATW2 / AWC->SET / Manual Adjustable |
| Auto (1/60sec ~ 1/100,000sec) (NTSC) |
| Built-in |
| OFF / BLC / HLC Selectable |
| Low / Middle / High / Off Selectable |
| On / Off |
| Auto / Color / BW / EXT |
| OFF / ON (8 Zone) |
| OFF / ON (Motion size : 28 × 15.4 AREA) |
| ON / OFF |
| Adjustable |
| -10°C ~ 50°C / 30%~80% RH |
| -20°C ~ 60°C / 20%~90% RH |
| DC 12V |
| 5.0”(Ø) x 4.0”(H) / 2.5 lbsIP68 Waterproof & Vandal-Resistant HAMMER® Case |
