> Item #682

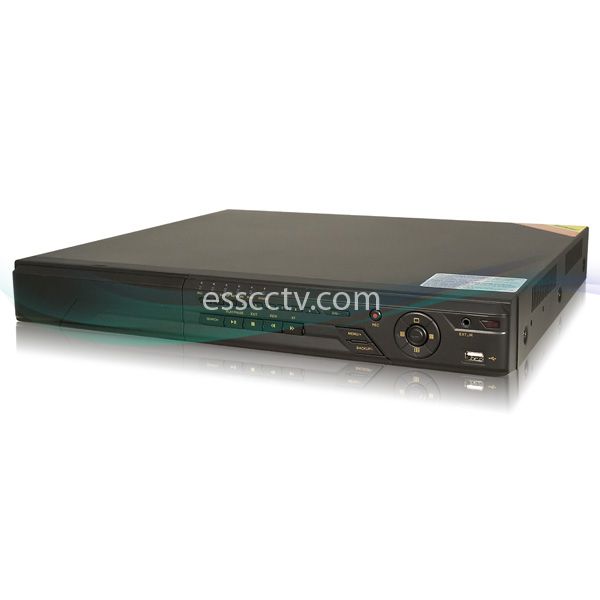

LTS V-Series NVR, 16ch 1080p record at 15 FPS per channel, HDMI out

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for LTS V-Series NVR, 16ch 1080p record at 15 FPS per channel, HDMI out: LTD2816NE-L

Additional Image for LTS V-Series NVR, 16ch 1080p record at 15 FPS per channel, HDMI out: Front Panel

Additional Image for LTS V-Series NVR, 16ch 1080p record at 15 FPS per channel, HDMI out: Back Panel

Model: LTD2816NE-L
Item #: 682
Manufacturer: LT Security Inc

MSRP: ~~$565.00~~
Our Price:

$378.00

(You save: $187.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: KNR-p16Px16

Mfg Part No: LTD2816NE-L

16CH 1080P/720P/VGA recording, adopt standard H.264 compression format to get high-quality video at much lower bit rate

HDMI output is 1920x1080 and max. Resolution of VGA output is 1280x1024

Support 1 BNC main out

Intuitive and user-friendly Graphic User Interface (GUI), Operation by mouse

Multi-mode recording: manual/timer/motion/sensor

Playback: support 16simultaneous playback with 1CH audio

Search: calendar/time, events (alarm, motion)

Express and flexible backup via USB, network or DVD-RW (SATA), SATA x 1+DVD-RWx 1 or SATA x 2

Pentaplex: Preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol and CMS supported

Remote control via IE or CMS: preview, playback, backup, PTZ and configuration

Dual streaming technology to encode recording stream and network stream separately. User can adjust network stream to fit bandwidth without changing recordingquality

Multi-user online simultaneously

Authorization management, log review and NVR status review

Support PTZ preset and auto cruise, up to 128 presets and 8 cruises

Powerful smart phone surveillance supporting iPhone, iPad and Android.

Gigabit Ethernet Interface to get the fastest transmission

Complete SDK software available, easy to integrate with other applications

Power DC12V

Standard 1U case

Support multi languages

V-Series NVR is only compatible with V-Series IP cameras

System	Compression	Standard H.264 Main profile
System	OS	Embedded LINUX
Video	Output	Video Output: 1 VGA(Max 1280x1024);1 BNC; 1 HDMI (1920 x 1080)
IP Input	1080P	16CH@120FPS
	720P	16CH@240FPS
	VGA	16CH@480FPS
Audio	Input	RCA X1
	Output	RCA X1
	2-way audio	Yes
Record	Resolution	1080P/720P/VGA
	Display Frame Rate	100fps ( PAL) ，120fps( NTSC)
	Record Frame Rate	120fps(1080P); 240fps(720P); 480fps(D1)
	Bit rate	768k~12Mbps
	Encode	VBR/CBR
	Quality	Five level
	Mode	Manual, timer, motion, sensor
	File	Lock, unlock, reserving time, redundancy
Play back	Channel	16CH
	Search	Time/calendar search, event search(montion, external alarm event)
	Intelligent search	Apply different colors to display whether a channel in a period of time recording or not
	Function	Play, pause, FF, Rewind, Shuttle control, preview previous video& next video, digital zoom and support frag the progress bar to preview
Alarm	Mode	Sensor, motion detection, video loss
	Input	16CH
	Output	1CH
	Triggering	Record, PTZ alarm out, e-mail
Network	Interface	Rj45 10/100M
	Protocal	TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS,Email
	others	5 users online, dual streaming real-time transmission
Cell phone	OS	iPhone, iPad, Andriod
Cell phone	Function	Multi-screen surveillance(for certain model), record, snapshot, PTZ control, save the device list
Port	HDD	SATA x 1+DVD-RW x 1 or SATA x 2;
	RS485	RS485X2, one for PTZ, another for keyboard
	USB	USB2.0X2, one for mouse, another for USB backup device
	Remote controller	Yes
Others	Power supply	D C 12V
	Average Operating Power	≤30W
	Dimention	430mm(L)x 385mm(W) x 55mm(H)
	Work Environment	0～50 ℃，10%～90% Humidity
Mechanical	Chasis Material & Color	Metal & Black
	Product Net Weight	430mm(L) x 385mm(W) x 55mm(H)
	Product Dimension	8lb(3.63Kg)
Packing	Qty	4pcs
	Carton Dimension	603mm(L)×578mm(W)×490mm(H)
	Carton Gross Weight	19kg
Accessories	Power Adapter	1
	IR Receiver	1
	Mouse	1
	Cable	Ethernet/BNC(Female)-RCA(Female)
	SCREWS	4
	CD	1
	Manual	1
