SPECIFICATION
|
|

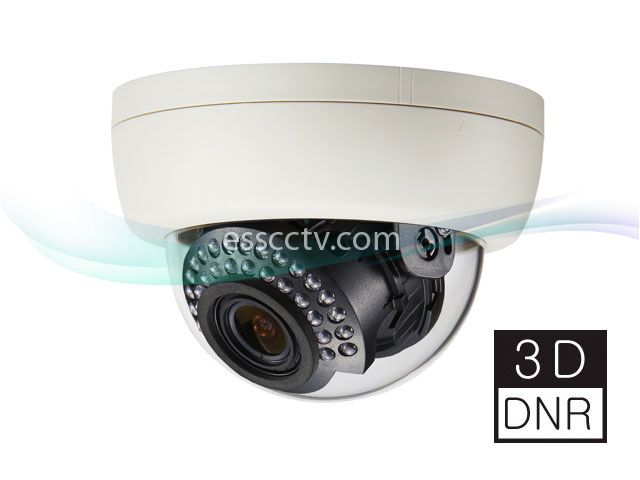

KPC-DNH100
|
|
Image Device
|
1/3" SONY Super HAD CCD Ⅱ
|
|
Scanning System
|
2:1 Interlace |
|
Scanning Frequency
|
NTSC : 15.734 KHz(H), 59.94 Hz(V) |
| PAL : 15.625 KHz(H), 50 Hz(V) |
|
H. Resolution
|
600TVL
|
|
Total Pixels
|
NTSC : 811(H) x 508(V) / PAL : 795(H) x 596(V) |
|
Effective Pixels
|
NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) |
|
S/N Ratio
|
More than 50dB (AGC Off)
|
|
Min. Illumination
|
0 Lux (IR LED On)
|
|
Sync. System
|
Internal |
|
Gamma
|
r=0.05 ~ 1.0 Adjustable / USER
|
|
Video Output
|
1.0 Vp-p Composite (75Ω) |
|
Lens
|
Varifocal
|
|
Electronic Shutter
|
NTSC : 1/60 sec / PAL : 1/50 sec
|
|
Manual Shutter
|
1/60(50), FLK, 1/250, 1/500, 1/2K, 1/5K, 1/10K, 1/100K, X2, X4, X8, X16, X32, X64, X128, X256
|
| Sense-Up |
Off / Auto (X2, X4, X8, X16, X32, X64, X128, X256)
|
| BLC |
OFF / BLC / HSBLC
|
|
AGC
|
Off / Low / Middle / High
|
|
White Balance
|
ATW / PUSH / PUSH-LOCK / MANUAL / Indoor / Outdoor
|
|
Day&Night
|
True Day & Night With ICR Mechanism
|
|
Motion Detection
|
Zone 4ea (Mask On / Off)
|
|
Privacy Zone
|
Zone 8ea (Mask On / Off)
|
|
3-DNR
|
Off / On (0 ~ 100 Level Adjustable)
|
|
D-WDR
|
Off / Indoor / Outdoor
|
|
|
Freeze/Mirror/D-zoom/Sharpness/Color gain/Gamma/NEG.Image
|
|
OSD
|
Built-in
|
|
Language
|
Standard : English, French, Russian, German, Spanish, Dutch / Option1 : English, Chinese / Option2 : English, Japanese
|
|
IR LED
|
850nm, 30ea, up to 30m
|
|
IR LED Operation
|
On (1 Lux) / Off (3 Lux)
|
|
Operating Temperature
|
14˚F ~ 122˚F (-10˚C ~ +50˚C) |
|
Storage Temperature
|
-4˚F ~ 140˚F (-20˚C ~ +60˚C) |
|
Power Comsumption
|
DC12V : DC12V (±10%), Max. 550mA |
|
DC12V / AC24V : AC24V (±10%), Max. 6.8W / DC12V (±10%), Max. 650mA
|
|
Dimensions (mm)
|
Bubble (100Φ), 136.4Φ X 95.3mm
|
|
Weight
|
Approx. 343 g |
|
Options
|
DC12V/AC24V Dual Voltage, Digital Day&Night |
LENS OPTIONS
|
|
Aspheric Vari-Focal DC IRIS Lens (ICR)
|
| Focal Length |
9.0 ~ 22.0 |
2.6 ~ 11.0 |
| Aperture |
F1.6 ~ 360 |
F1.2 ~ 360 |
| Angle of View |
40.6˚ ~ 16.2˚
|
133.14˚ ~ 34.55˚
|
DIMENSIONS
3-AXIS ROTATING MECHANISM
|
