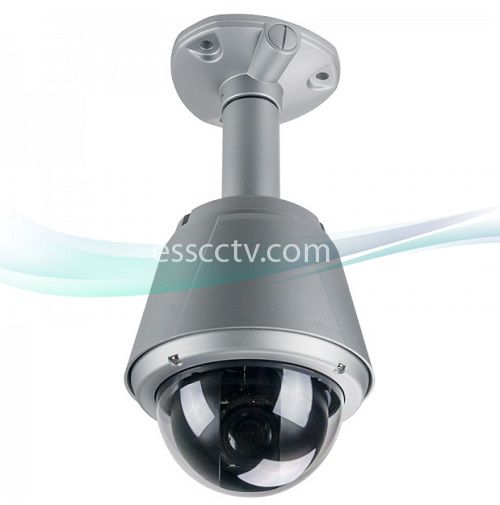

XPT-1220 HD-SDI outdoor PTZ camera: 1080p, 20x Optical Zoom, ICR True Day/Night

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for XPT-1220 HD-SDI outdoor PTZ camera: 1080p, 20x Optical Zoom, ICR True Day/Night: XPT-1220

Additional Image for XPT-1220 HD-SDI outdoor PTZ camera: 1080p, 20x Optical Zoom, ICR True Day/Night: UH P220

Additional Image for XPT-1220 HD-SDI outdoor PTZ camera: 1080p, 20x Optical Zoom, ICR True Day/Night: Dimension

Model: XPT-1220
Item #: 659

MSRP: ~~$1,600.00~~
Our Price:

$1,090.00

(You save: $510.00)

2.0 Mega-Pixel Resolution PTZ

X160 Zoom Control (Optical X20 / Digital X8)

True Day & Night with ICR (IR Cut Filter)

NR (Noise Reduction) / Image Stabilization Function

Minimum Illuminance (1.5 Lux @ Color / 0.1 Lux @ B/W)

Super Speed (500°/SEC.) with 360° Endless Pan Rotation

The Shortest Path with Vector Drive Technology

Micro Control (0.05°/SEC.) with Micro Stepping Control Technology

Super Video Quality with RAW Video Data

HD-SDI Standard Support (HDcctvTM V1.0 / 1.485Gb/s / SMPTE 292M)

Simultaneous HD-SDI & Composite Output

OSD(On-Screen Display) Menu with Password Function

8 Privacy Masks with Spherical Coordinates

8 Sets of Scheduler Function with RTC(Real Time Clock)

255 Presets (46 Presets reserved for Hot Keys) / 10 Swings / 4 Patterns / 8 Groups

Frame Freeze Function

Dual Power Input (AC 24V or DC 12V)

Vandalproof / Weatherproof with Built-in Fan & Heater

Waterproof (IP 67)

Wall or Ceiling Mount INCLUDED

What is the benefit of HD-SDI cameras?

HD-SDI stands for High-Definition Serial Digital Interface.

HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.

Actual Image Recorded

Digital Zoom on above image 1

Digital Zoom on above image 2

Camera	Image Sensor	1/3'' PS CMOS Sensor
	Resolution	2,000K Pixels
	Zoom	Optical X20 & Digital X8
	Focal Length	F1.6~2.9, f=4.45~89 mm
	Gain Control	OFF / Low / Middle / High / Manual
	Shutter Control	Auto / Manual(x60~1/33,000) / A.FLK
	White Balance	Auto / Manual (Red, Blue Gain Adjustable)
	Day & Night	Auto / Day / Night (ICR)
	Minimum Illuminance	1.5 Lux (Color, F1.6, 50 IRE) / 0. 1Lux (B/W, F1.6,50 IRE)
	BLC	OFF / BLC / HLC
	Sens-up	OFF / Auto (x2 ~ x60)
	Privacy Zone	8 Masks with Spherical Coordinate
	Image Stabilization	On / Off
Pan/Tilt	Range	Pan : 360°(Endless) / Tilt : 90°
	Pan/Tilt Speed	Preset : 500° / SEC.
		Manual : 0.05° ~ 360° / SEC. (Zoom Proportional)
		Swing : 10°~180° / SEC.
	Preset	255 Presets (46 Presets reserved for Hot Keys)
	Pattern	4 Patterns [768 Commands(Approximate 5 Minutes) / 1 Pattern]
	Swing	10 Swings
	Group	8 Groups (MAX. 40 Actions with The Combination of Preset, Pattern and Swing)
	Scheduler Function	8 Scheduler Functions with RTC(Real Time Clock)
	Other Functions	Auto Flip, Auto Parking, Power-up Action & etc.
Video	Output	2 x BNC (HD-SDI and CVBS)
	HD-SDI Standard	HDcctv V1.0 / 1.485Gb/s / SMPTE 292M
		Resolution : 1080p30, 1080i60, 720p60/30
	CVBS	1.0 Vp-p
RTC(Real Time Clock)	YES (RTC Battery Backup Time : Approximate 2 Weeks)
OSD	YES (English)
Serial Port	Port	RS-485 for PTZ Control
	Protocol	Pelco-D, Pelco-P Selectable
Sensor / Alarm	Sensor Input	3 Inputs, Photo-Coupler Type, DC 5V~12V
	Alarm Output	1 Output, Relay Output, MAX. Load DC 24V / 1.0A or AC 125V / 0.5A
Physical	Mount Bracket	Wall Mount Bracket or Ceiling Mount Bracket
	Dimension	Dome : Ø150mm / Ø5.9"
		Wall Mount : 200(Ø) × 408(H) [mm] / 7.87"(Ø) × 16.1"(H)
		Ceiling Mount : 300 × 309(H) [mm] / 11.8" × 12.2"(H)
	Weight	Approximate 3.6 Kg / 7.9 Lbs with Wall Mount Bracket
		Approximate 3.4 Kg / 7.5 Lbs with Ceiling Mount Bracket
	Material	Dome : Poly Carbonate / Housing : Aluminum
	Rated Power	Dual Power Support : DC 12V / 1.8A or AC 24V / 2.0A
	Waterproof	IP 67
	Fan	Always ON
	Heater	Operation Start from Internal Temperature 10 °C (50°F)
	Operating Temp.	-30°C ~ 50°C (-34°F ~ 122°F)
