> Item #650

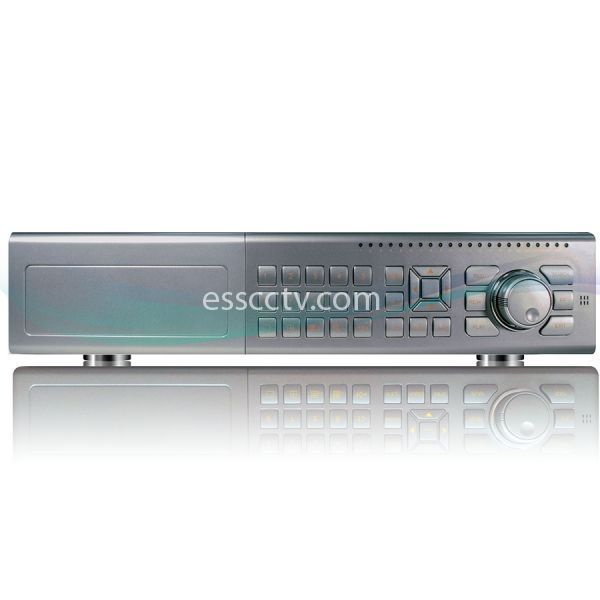

LTS 960H 32ch DVR system, real-time record and playback, HDMI output, Mobile Phone access

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for LTS 960H 32ch DVR system, real-time record and playback, HDMI output, Mobile Phone access: LTD2532HD-C

Additional Image for LTS 960H 32ch DVR system, real-time record and playback, HDMI output, Mobile Phone access: Back Panel

Model: LTD2532HD-C
Item #: 650
Manufacturer: LT Security Inc

MSRP: ~~$1,275.00~~
Our Price:

$1,125.00

(You save: $150.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: LTD8432T-FA

LTD2532HD-C is a premier 32 CH realtime 960H high resolution DVR, H.264 High profile compression format and industry's advanced SOC technics to ensure realtime 960H recording in each channel. Support 32CH video input, 16CH audio input, feature simultaneous 16CH playback, and HDMI 1080P high resolution display with standard 2U case.

32 CH realtime 960H H.264 recording

HDMI/VGA output is 1920x1080

Support 1 mainout and 1 spot BNC output; Loop out 32CH

Intuitive and user-friendly Graphic User Interface(GUI), Windows style operation by mouse

Multi-mode recording: manual/timer/motion/sensor

Playback: support 16CH simultaneous playback

Search: calendar/time, events(alarm, motion)

Express and flexible backup via USB, network or DVD-RW(SATA)

Pentaplex: Preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol and CMS supported

Remote control via IE or CMS: preview, playback, backup, PTZ and configuration

Dual streaming technology to encode recording stream and network stream separately. User can adjust network stream to fit bandwidth without changing recording quality

Multi-user online simultaneously

Authorization management, log review and DVR status review

HDMI 1920x1080 output

Support PTZ preset and auto cruise, up to 128 presets and 8 cruises

Powerful smart phone surveillance supporting iPhone/iPad/Android

Giga Ethernet Interface to get the fastest transmission

System	Compression Format	H.264
	OS	Embedded Linux
Video	Input	32CH, BNC (1.0Vp-p, 75Ω)
	VGA Output	VGA: 1080P
	BNC	1 CH
	Loop Output	32CH
	Spot Output	1CH
	HDMI	Compatible with HDMI 1920x1080 output, progressive scan, 60Hz frame rate.
Audio	Input	16
	Output	1
	Bidirectional Talk	YES
Recording	Realtime	32CH WD1
	Recording Mode	Manual,Timer, Motion, Sensor
Playback	Playback Channel	16
	Search Mode	Time, Event, File Management
Backup	USB Disk	1 USB 2.0 port
	DVD Burner	-
	Backup Format	DAT or AVI
Remote Application	Dual Stream	Master stream: 30(NTSC)/25(PAL)fps CIF per channel Network stream: 1/3fps CIF per channel
	Browser	IE, Safari, Chrome, Firefox
	Master Stream in Network	YES
	CMS	Yes
	Mobile Phone	BroView for iPad/iPad2/iPhone/Android
	User Access	18 users online with professional authority management
Alarm	Alarm Input	16 CH
	Alarm Output	4 CH
Storage	HDD	8 SATA
	e-SATA	1
	Max HDD after Deploying DVD	4
PTZ	PTZ	1*RS485
	PTZ Protocol	PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP, VISCA, SAMSUNG, RM110,HY
Network	Ethernet	1000 Mbps Ethernet (RJ-45)
	Protocol	TCP/IP, DHCP, DDNS, NTP, SMTP
Others	Power Supply	100VAC-240VAC
	Operating Temperature	0°C ~50°C
	Humidity	10% ~ 90% Humidity
	Product Dimension	16.75” (l) x 17.75 (w) x 3.5” (h)
