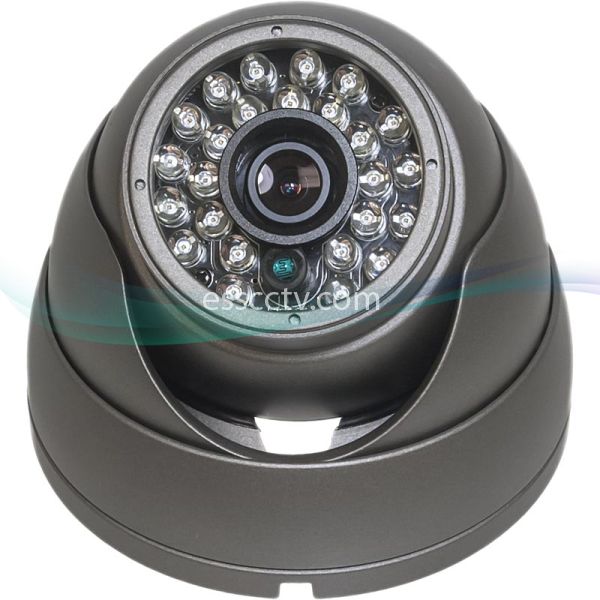

HD-SDI Outdoor Turret Dome IR camera: 2 Megapixel Full HD 1080p image, 4.3mm Fixed Lens, 25 IR LED
.jpg)
Images are for illustration purpose and may not show the actual product.
Additional Images:
.jpg "XIB-2022")
.jpg "side")
Model:
XIB-2022
Item #: 646
Manufacturer: Eyemax
MSRP:
$130.00
Our Price:
$88.00
(You save: $42.00)
- 1/3" Sony CMOS
- 4.3mm Mega Pixel IR Fixed lens
- HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
- HD-SDI (High Definition Serial Digital Interface)
- 0 lux at IR On (IR LED 25pcs)
- Upgraded water-resistant IP-67 housing
- 25 Smart IR LED with True Day & Night - ICR
- DNR (Digital Noise Reduction)
- Easy installation
- 12V DC
- HD-SDI cameras are recommended to use only with RG59/RG6 cables with crimp/compressed connectors
What is the benefit of HD-SDI cameras?
HD-SDI stands for High-Definition Serial Digital Interface.
HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.
Actual Image Recorded
Digital Zoom on above image 1
Digital Zoom on above image 2
| Resolution |
HD-SDI(1080p, 720p) / 1000 TV line over |
| Sensor |
1/3" Sony CMOS |
| Total Pixels |
2010(H) × 1108(V) = 2.2M Pixel |
| Effective Pixels |
1944(H) × 1092(V) = 2.1M Pixel |
| Scanning System |
Progressive |
| S/N (Y signal) |
More than 52 dB (AGC Off) |
| Video Output |
SMPTE292M (HD-SDI) |
| Min.Illumination |
0 lux at IR On |
| White Balance |
Auto |
| Electronic Shutter Speed |
Auto (1/30sec ~ 1/60,000sec) |
| Brightness |
Adjustable (0 ~ 20 Step) |
| DNR |
Middle |
| Day & Night |
Extern |
| Language |
English |
| Operating Temperature / Humidity |
14°F~122°F (-10°C~+50°C) / 30%~80% RH |
| Storage Temperature / Humidity |
-4°F~+140°F (-20°C~+60°C) / 20%~90% RH |
| Power |
DC 12V Only |
| Signal Transmission |
300 ~ 450ft (100 ~ 150m)
(Max transmission range is depends on the cable manufacturer and the installation environment.) |
