> Item #625

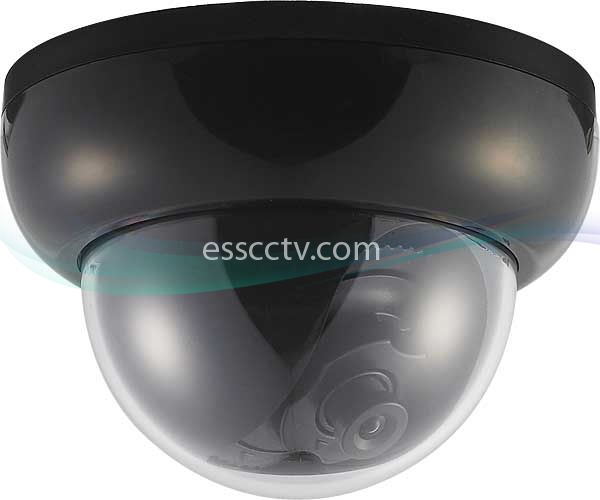

EYEMAX Indoor Dome Camera: 470 TVL, 3-Axis Superdome, 3.6mm, Day/Night

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for EYEMAX Indoor Dome Camera: 470 TVL, 3-Axis Superdome, 3.6mm, Day/Night: DO 272-M

Additional Image for EYEMAX Indoor Dome Camera: 470 TVL, 3-Axis Superdome, 3.6mm, Day/Night: White Case

Model: DO 272-M
Item #: 625
Manufacturer: Eyemax

MSRP: ~~$76.00~~
Our Price:

$39.00

(You save: $37.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: DO 602M

1/3 inch Color IT CCD

Day & Night : Sensitivity increased during night time

470 TV Line

0.3 Lux at F2.0

DC 12V

3.6mm Fixed Board Lens Installed

Superdome Medium-Sized Dome

The DO 272-M dome camera have a 470 TV lines of resolution. The precision of the standard angle 3.6mm fixed lens for the DO 272-M allow you to setup the camera shot quickly and easily. With a good resolution CCD, you'll have clear and a crisp corrected image, even at low light environments. And it runs on a 12VDC power supply. The DO 272-M dome camera work great in department stores, jewelry shops, convenience stores and professional business environments.

Resolution	470 TV Lines
Image Pick-up Device	A1 PROs 1/3 inch Color IT-CCD
Picture Elements	537(H) x 505(V) 270K pixels
Effective Picture Elements	510(H) x 492(V) 250K pixels
Scanning Area	3.65(H) x 2.74(V) mm
Scanning System	2:1 Interface/ 525 Lines / 60 Fields / 30 Frames
Iris Mode	ESC
Lens	3.6mm Fixed Lens
Minimum Illumination	0.3 Lux at F2.0
Sync. System	Internal Only
Video Output	1.0 Vp-p Comp.
Electronic Iris	1/60 sec ~1/100,000 sec
Backlight Compensation	Built-in
Gain Control	Built-in
White Balance	AWB
Day & Night	Auto / On
Gamma	r=0.45
S/N Ratio	48dB (AGC Off)
Operating Temp.	14°F ~ 122°F
Power Source	DC 12V
Power Consumption	100mA
Casing / Dimensions	5.0”(Ø) x 3.5”(H) / 1.1 lbs / SuperDome Medium Dome
