> Item #624

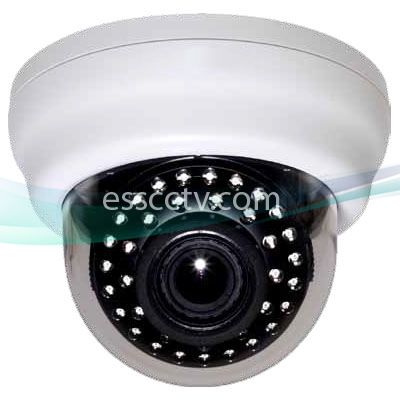

HD-SDI Indoor Dome camera: 2 Megapixel 1080p image, 2.8~12mm Adjustable Lens, 40 IR LED, ICR

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for HD-SDI Indoor Dome camera: 2 Megapixel 1080p image, 2.8~12mm Adjustable Lens, 40 IR LED, ICR: XDR 242FV

Additional Image for HD-SDI Indoor Dome camera: 2 Megapixel 1080p image, 2.8~12mm Adjustable Lens, 40 IR LED, ICR: Dimension

Model: XDR 242FV
Item #: 624

MSRP: ~~$418.00~~
Our Price:

$189.00

(You save: $229.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: XID-132V

1/3 inch SONY 2 Mega-pixel CMOS, Progressive Scan

Auto-IRIS V/F Lens: 2.8~12mm megapixel

1080p Resolution

Horizontal Resolution: 1000+ TVL

Min Illumination : 0 Lux at IR On

40 IR LED

HD-SDI output / Standard CCTV output available both in one camera

True Day/Night: IR-cut Filter Auto Removal (ICR)

3DDNR (3D Digital Noise Reduction) - Clear motion noise

OSD (On Screen Display) - Easy camera setup

BLC, HLM, Sens-Up

3-Axis: Angle-in anywhere

12V DC

HD-SDI cameras are recommended to use only with RG59/RG6 cables with crimp/compressed connectors

What is the benefit of HD-SDI cameras?

HD-SDI stands for High-Definition Serial Digital Interface.

HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.

Actual Image Recorded

Digital Zoom on above image 1

Digital Zoom on above image 2

Resolution	HD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor	1/3“ SONY CMOS
Total Pixels	2010(H) X 1108(V) = 2,227,080
Effective Pixels	1944(H) X 1092(V) = 2,122,648
Scanning System	Progressive Scan
S/N (Y Signal)	More than 52 dB(AGC Off)
Video Output	SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75ohm)
Min. Illumination	0 Lux at IR On
White Balance	AUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter Speed	AUTO / MANUAL(1/30sec ~ 1/30,000sec)
Brightness	Adjustable (0~20 Step)
Sens-up	OFF / X2 / X3 / X4
DNR	OFF / LOW / MIDDLE / HI
WDR / BLC	OFF / WDR / BLC
HLM	OFF / SET
ACE	OFF / ON
Day & Night	AUTO (Day Night TIME Change), COLOR, B/W
Privacy	OFF / ON (28 Zone)
Motion Detection	OFF / ON
D. Zoom	0 ~ X112
FLIP	OFF / ON
FREEZE	OFF / ON
Language	ENGLISH
Sharpness	ADJUSTABLE (0~10 STEP)
Mirror	ON / OFF
COMM.	RS-485(PELCO-D)
Operating Temperature / Humidity	-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity	-20°C~+60°C (-4°F ~ 140°F) / 20% ~ 90% RH
Power	DC 12V
HD-SDI	100~150m
Transmission range	Max transmission range is depends on the cable manufacturer and the installtion environment.
