> Item #616

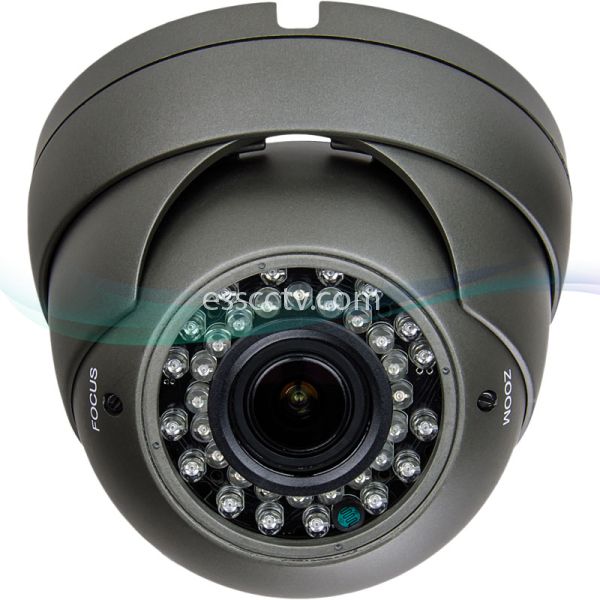

AHD Analog HD Outdoor Eyeball Dome Camera, A-HD 720p Megapixel, 2.8-12mm, 36 IR LED

Images are for illustration purpose and may not show the actual product.

Additional Images:

Model: AIB-B1032V
Item #: 616

MSRP: ~~$90.00~~
Our Price:

$84.00

(You save: $6.00)

FEATURES

Camera Inputs & Outputs

A-HD Video Connector

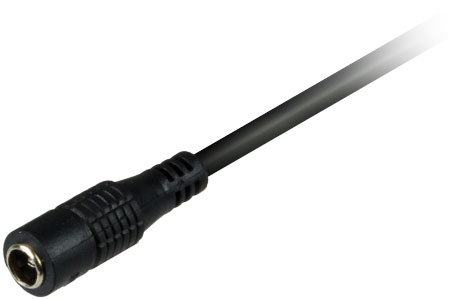

DC Power Input

Screw Anchor × 3

Mounting Screws × 3

Mounting Lock Tool

Image Sensor	1 / 3 ” Mega Pixel Sensor
Effective Pixels	1.3 Mega Pixels
Built-in Lens	2.8-12mm Mega Pixel Lens
Signal System	PAL/NTSC
Horizontal Resolution	PAL:1280X720P 25F/S NTSC:1280X720P 30F/S
Sync. System	Internal Sync.
Sensor Area	4.8mmx3.6mm
Video Output	75Ω BNC
S/N Ratio	More than 50dB (AGC OFF)
White Balance	Auto Tracking White Balance
Shutter Speed	1/25~50,000 Sec.
Illumination for Infrared Switching	3 Lux
Infrared Wavelength	850nm
Minimum Illumination	0 Lux (Infrared Lamps Turn on)
IR Leds	36 pcs
IR Radiation Distance	30m
Working Temperature	-50°F~-122°F (-10°C~-50°C)
Storage Temperature	-68°F~-140°F (-20°C~-60°C)
Power Requirement	DC12V, Max Power Comsumption Less Than 5W (When the infrared lamps turn on)
