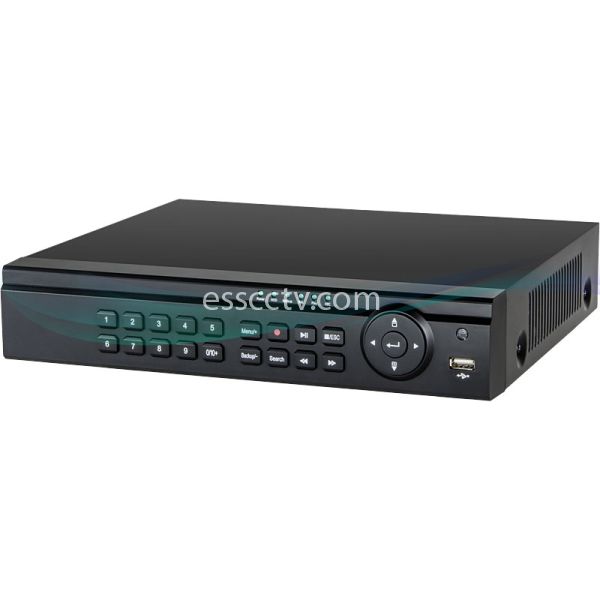

AVST AT1008 is standard 8 CH real time 720P high resolution DVR, which adopt the standard H.264 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. AVST AT1008 support 8 CH video input, 1 CH audio input, simultaneous 8 CH real time playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
System | Compression | Standard H.264 High Profile |
OS | Embedded Linux | |
CPU | Cortex A9 | |
Video | Input | BNC x 8CH Support 720P@30fps,960H,D1 input |
Output | VGA x 1CH : 1080P(1920x1080) HDMI x 1CH : 1080P(1920x1080) | |
Audio | Input | RCA x 1CH |
Output | RCA x 1CH | |
2-way Audio | Take up 1 CH audio input | |
Record | Resolution | 720P (1280 X 720), 960H,D1 |
Frame Rate | 240fps@720P/960H | |
Bit Rate | 256Kbps ~ 4 Mbps | |
Encode | VBR / CBR | |
Quality | 6 level | |
Mode | Manual, Timer, Motion | |
File Management | Lock, Unlock, Reserving Time | |
Playback | Playback | 8 CH |
Search Smart Search | Time/calendar search, event(motion) Highlighted date and time to display the channel record |
|
Function | Play, Pause, FF,FB,Digital zoom | |
Alarm | Mode | Motion, Video Loss |
Input | No | |
Output | No | |
Triggering | Record, PTZ move,E-mail, etc | |
Network | Interface | RJ45 |
Protocal | TCP/IP.UDP,DHCP.DNS,PPPOE,DDNS | |
User | 10 users online, dual stream | |
Cellphone | OS | Iphone, Android |
Function | Multi-screen surveillance(for certain model), record,snapshot, PTZ control, save the device list | |
I/O | HDD | SATA x 1 |
RS485 | RS485 x 1 (for PTZ or Keyboard) | |
USB | USB2.0 x 2 (for mouse and USB backup device) | |
IR controller | Optional | |
Others | Dimension | W255mm×D210mm×H42mm |
Power Supply | DC 12V | |
Working Environment | 10% ~ 90%(Humidity),-10°C ~50°C |
