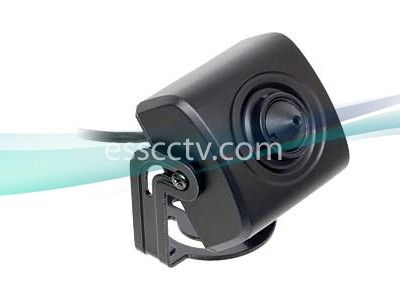

EYEMAX mini square camera, 620 TVL, 3.7mm pinhole lens, 0.01 lux
Images are for illustration purpose and may not show the actual product.
Model:
SQ PM 60P
Item #: 602
Manufacturer: Eyemax
MSRP:
$103.00
Our Price:
$79.00
(You save: $24.00)
This Model has been discontinued.
Please follow the link for our recommended replacement: KPC-E23NUP
- 1/3” Sony Super HAD II CCD
- 3.7mm Hidden Pin-hole Lens
- 620 TVL : Razor sharp high resolution
- 0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W)
- DC 12V
 |
High-Res 620 TV Line
The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
| 620 TV Line |
| 1/3 inch Sony Super HAD II CCD |
| 811(H) x 508(V) 410K pixels (NTSC) |
| 768(H) x 494(V) 380K pixels (NTSC) |
| 2:1 Interface |
| More than 50 dB (AGC Off) |
| Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) |
| CVBS : 1.0 Vp-p Comp. 75Ω |
| 0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W) |
| ATW |
| Auto (1/60sec ~ 1/100,000sec) (NTSC) |
| Auto |
| -10°C ~ 50°C / 30%~80% RH |
| -20°C ~ 60°C / 20%~90% RH |
| DC 12V |
