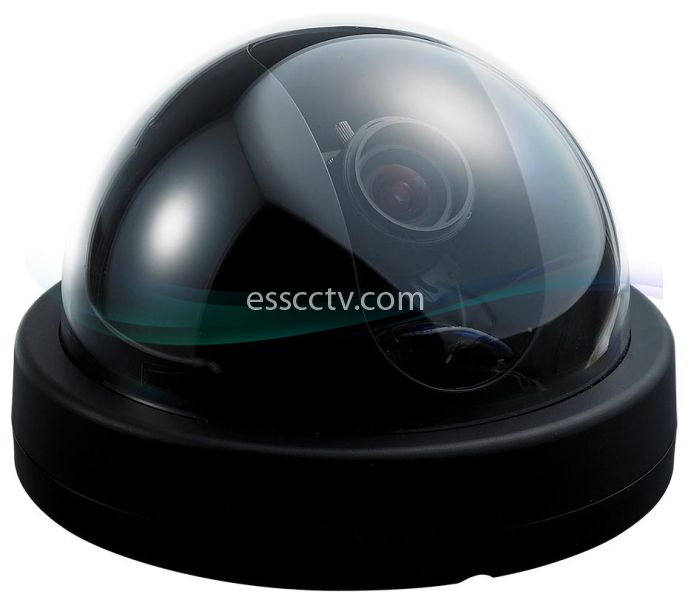

EYEMAX DO-622FV SUPERDOME : 600 TVL Color Dome Camera, 2.8~12mm Lens, WDR, SENS-UP, ICR
Images are for illustration purpose and may not show the actual product.
Model:
DO 622FV
Item #: 59
Manufacturer: Eyemax
MSRP:
$230.00
Our Price:
$119.00
(You save: $111.00)
- Superdome
- 600 TV Lines
- 3D DNR, HLM, SENS-UP
- All-in-on Camera for any installation
- 3 Axis: Angle-it-anywhere
- Easy Flip Open Case
- 1/3" SONY Super HAD CCD
- 12V DC
- OSD
- 2.8~12mm Auto-Iris vari-focal Lens
- Double-Scan WDR
OSD CAMERA SETUP
It has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.
3-AXIS DOME CONSTRUCTION
Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need
| 600 TV Lines |
| 1/3 inch SONY Double Scan CCD |
| 811(H) × 508(V) 410K pixels |
| 768(H) × 494(V) 380K pixels |
| 2:1 Interlace |
| Internal |
| Horizontal : 15.734KHz / Vertical : 59.94Hz |
| More than 52dB (AGC off) |
| CVBS : 1.0Vp-p / 75ohm |
| 0.3 Lux at F1.2 (Color) / 0.0001 Lux(Sens-up x256) |
| ATW / AWC / PUSH / Manual |
| Auto / Manual (1/60 sec ~ 1/100,000 sec) |
| Auto / Off |
| Built-in |
| Low / Middle / High / HLM / Off Selectable |
| Low / Middle / High / Off Selectable |
| Low / Middle / High / Off Selectable |
| Auto / Color / BW / CDS |
| ON / OFF (6 Zone) |
| ON / OFF (240 Zone) |
| FREEZE / V-FLIP / H-FLIP / ROTATE / NEGA : All ON / OFF Adjustable |
| ON / OFF |
| ON / OFF |
| ON (×1~10) / Off |
| Adjustable |
| -10°C~+40°C(14°F ~ 104°F) / 30~80% RH |
| -20°C~+60°C(-4°F ~ 140°F) / 20~90% RH |
| DC 12V |
