> Item #561

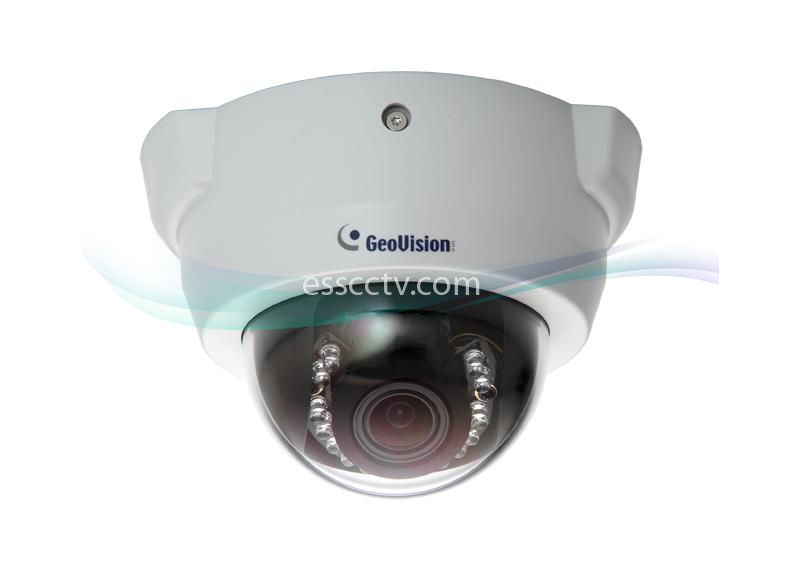

GEOVISION 3 Megapixel Network IP Camera: Indoor Dome, Full HD 1080p, 15 IR LED, PoE

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GEOVISION 3 Megapixel Network IP Camera: Indoor Dome, Full HD 1080p, 15 IR LED, PoE: GV-FD320D

Additional Image for GEOVISION 3 Megapixel Network IP Camera: Indoor Dome, Full HD 1080p, 15 IR LED, PoE: Side

Additional Image for GEOVISION 3 Megapixel Network IP Camera: Indoor Dome, Full HD 1080p, 15 IR LED, PoE: In-Ceiling Mounted

Additional Image for GEOVISION 3 Megapixel Network IP Camera: Indoor Dome, Full HD 1080p, 15 IR LED, PoE: Drawing

Model: GV-FD320D
Item #: 561
Manufacturer: GeoVision

MSRP: ~~$629.00~~
Our Price:

$516.00

(You save: $113.00)

This Model has been discontinued and replaced by a new model.
Please follow the link for the replacing model: GV-FD3400

1/2.5" progressive scan Low Lux CMOS

Stream 1 from H.264 and MJPEG;

Stream 2 from H.264, MPEG4 and MJPEG

Up to 20 fps at 2048 x 1536

3-axis mechanism (pan / tilt / roll)

2.7~9mm Wide-Angle Varifocal megapixel lens

15 Intelligent IR LED

2-way audio

AAC and G.711 audio codec

One sensor input and alarm output

TV-out support

Micro SD/SDHC Card Slot

DC 12V / AC 24V / PoE

Motion detection

Tampering alarm

Privacy mask

Removable IR-cut filter for Day/Night function

IP address filtering

Supports iPhone, iPad, Android & 3GPP

28 languages on Web interface

No SD/SDHC card slot & local storage function for Argentina

Camera
Image Sensor		1/2.5" progressive scan CMOS
Picture Elements		2048 (H) x 1536 (V)
Minimum Illumination	Color	1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
	B/W IR ON	0 Lux
Shutter Speed		Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance		Automatic, Manual (2800K ~ 8500K)
Lens
Megapixel		Yes
Day/Night		Yes (with removable IR-cut filter)
Lens Type		Varifocal
Focal Length		2.7 ~ 9 mm
Maximum Aperture		F/1.3
Mount		Ø 14 mm
Image Format		1/3"
Angle of View	Diagonal	101° (W) ~ 32° (T)
	Horizontal	88° (W) ~ 27.9° (T)
	Vertical	49.7° (W) ~ 15.7° (T)
Operation	Focus	Manual (w / lock)
	Zoom	Manual (w / lock)
	Iris	DC drive
IR LED Quantity		15 IR LEDs
IR Distance		15 m / 50 ft (Max.)
Operation
Video Compression		H.264, MPEG4, MJPEG
Video Streaming		Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
Frame Rate		20 fps at 2048 x 1536* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity
Audio Compression		G.711, AAC (16 kHz / 16 bit)* AAC is only supported by GV-System V8.5 or later
Sensor Input		1 Input (Dry Contact)
Alarm Output		1 Output (200mA 5V DC)
Video Resolution
Main Stream	4:3	2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
	16:9	1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16:9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
Network
Interface		10/100 Ethernet
Ethernet Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting		ø 14 mm
Camera Angle Adjustment	Pan	0° ~ 350°
	Tilt	10° ~ 90°
	Rotation	0° ~ 340°
Temperature Detector		Yes
Connectors	Power	2-pin terminal block, PoE
	Ethernet	Ethernet (10/100 Base-T), RJ-45
	Audio	1 In (microphone phone jack, 3.5 mm / 0.14 in)1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
	Digital I/O	3-pin terminal block, pitch 2.5 mm / 0.1 in
	Auto Iris	DC drive
	Local Storage	Micro SD/SDHC memory card slot (for Class 6 card or above)
	TV-Out	BNC connector (640 x 480)
General
Operating Temperature		0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity		10% to 90% (no condensation)
Power Source		12V DC / 24V AC / PoE
Max. Power Consumption		12 W
Dimensions (L X W X H)		155 x 110 mm / 6.1 x 4.33 in
Weight		580 g / 1.28 lb
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type		End-Span
PoE Power Output		Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
Language		Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese* Bulgarian, Dutch, Greek, Indonesian, Lithuanian, Norwegian, Persian, Romanian, Slovakian, Slovenian, Thai and Turkish are only supported in V1.07 or later.
Applications
Network Storage		GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
Mobile Phone Support		GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone.
Live Viewing		IE , GV-MultiView
CMS Server support		GV-Center V2, GV-VSM, GV-Control Center
