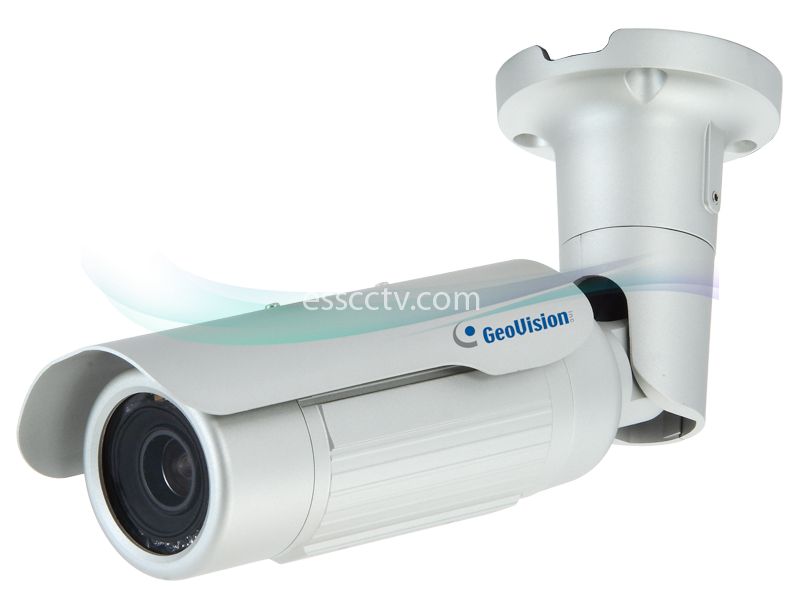

The Bullet Camera features a weather sealed and IP66 rating housing for outdoor use. The camera also features 16 IR LEDs for infrared illumination in night vision applications. Additionally, the Bullet Camera supports both DC 12V and AC 24V power supply.
| Camera | ||
| Image Sensor | 1/2.5" progressive scan CMOS | |
| Picture Elements | 2048 (H) x 1536 (V) | |
| Minimum Illumination | Color | 1 Lux (1/30 sec), 0.5 Lux (1/5 sec) |
| B/W | 0 Lux | |
| IR ON | ||
| Shutter Speed | Automatic, Manual (1/5 ~ 1/8000 sec) | |
| White Balance | Automatic, Manual (2800K ~ 8500K) | |
| Lens | ||
| Megapixel | Yes | |
| Day/Night | Yes (with removable IR-cut filter) | |
| Lens Type | Varifocal | |
| Focal Length | 3.6 ~ 9 mm | |
| Maximum Aperture | F / 1.3 | |
| Mount | Ø 14 mm | |
| Image Format | 1/3" | |
| Angle of View | Diagonal | 88.8° (W) ~ 36.3° (T) |
| Horizontal | 71° (W) ~ 29° (T) | |
| Vertical | 53.3° (W) ~ 21.8° (T) | |
| Operation | Focus | Manual (w/lock) |
| Zoom | Manual (w/lock) | |
| Iris | DC Drive | |
| IR LED Quantity | 16 IR LEDs | |
| IR Distance | 15 m / 50ft (Max.) | |
| Operation | ||
| Video Compression | H.264, MPEG4, MJPEG | |
| Video Stream | Stream 1 from H.264 and MJPEGStream 2 from H.264, MPEG4 and MJPEG | |
| Frame Rate | 20 fps at 2048 x 1536* The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Backlight Compensation, Shutter Speed, D/N Sensitivity | |
| Audio Compression | G.711, AAC (16 kHz / 16 bit)* AAC is only supported by GV-System V8.5 or later | |
| Sensor Input | 1 Input (Dry Contact) | |
| Alarm Output | 1 Digital Output (200mA 5V DC) | |
| Video Resolution | ||
| Main Stream | 4 : 3 | 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 |
| 16 : 9 | 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252 | |
| 5 : 4 | 1280 x 1024, 640 x 512, 320 x 256 | |
| Sub Stream | 4 : 3 | 640 x 480, 320 x 240 |
| 16 : 9 | 640 x 360, 448 x 252 | |
| 5 : 4 | 640 x 512, 320 x 256 | |
| Network | ||
| Interface | 10/100 Ethernet | |
| Protocol | HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) | |
| Mechanical | ||
| Lens Mounting | ø 14 mm | |
| Temperature Detector | Yes | |
| Camera Angle Adjustment | Pan | 0° ~ 360° |
| Tilt | 90° ~ 180° | |
| Rotate | 0° ~ 360° | |
| Connectors | Power | 3-pin terminal block, PoE |
| Ethernet | RJ-45 | |
| Audio | 1 In (RCA female for microphone)1 Out (RCA female for speaker) | |
| Digital I/O | I/O Wires | |
| Auto Iris | DC Drive | |
| Local Storage | Micro SD/SDHC memory card slot (for Class 6 card or above) | |
| TV-Out | None | |
| General | ||
| Operating Temperature | -20 °C ~ 50 °C / -4 °F ~ 122 °F | |
| Humidity | 10% to 90% (no condensation) | |
| Power Source | 12V DC / 24V AC / PoE | |
| Max. Power Consumption | 12 W | |
| Dimensions | Camera Body | 277.5 x 87.75 x 148.95 mm / 10.9 x 3.45 x 5.86 in |
| Cable Length | 1 m / 3.28 ft | |
| Max. Cable Diameter | ø 7.1 mm / 0.28 in | |
| Max. Connector Diameter | ø 25.2 mm / 0.99 in | |
| Weight | 1.35 kg / 2.98 lb | |
| Protection Classification | IP66 | |
| Regulatory | CE, FCC, C-Tick, RoHS compliant | |
| Power over Ethernet | ||
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE | |
| PoE Power Supply Type | End-Span | |
| PoE Power Output | Per Port 48V DC, 350mA. Max. 15.4 watts | |
| Web Interface | ||
| Installation Management | Web-based configuration | |
| Maintenance | Firmware upgrade through Web Browser or Utility | |
| Access from Web Browser | Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay | |
| Language | Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese* Bulgarian, Dutch, Greek, Indonesian, Lithuanian, Norwegian, Persian, Romanian, Slovakian, Slovenian, Thai and Turkish are only supported in V1.07 or later. | |
| Applications | ||
| Network Storage | GV-NVR, GV-System, GV-Backup Center, GV-Recording Server | |
| Mobile Phone Support | GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone. | |
| Live Viewing | IE , GV-MultiView | |
| CMS Server support | GV-Center V2, GV-VSM, GV-Control Center | |
