> Item #549

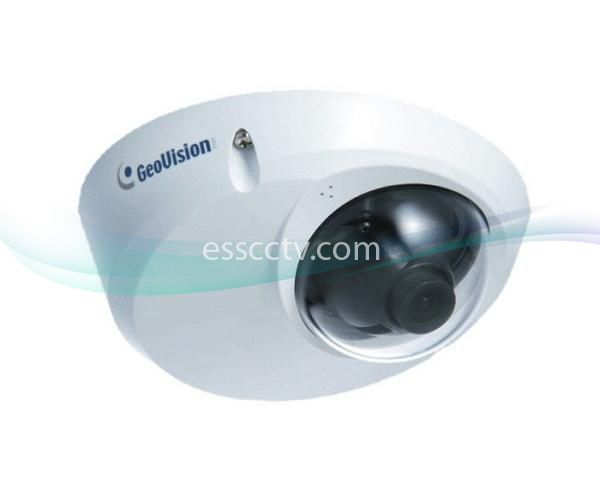

GEOVISION 1.3 Megapixel Network IP Camera: Mini Dome, 0.08 Low lux, Microphone, PoE

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Mini Dome, 0.08 Low lux, Microphone, PoE: GV-MFD120

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Mini Dome, 0.08 Low lux, Microphone, PoE: Side

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Mini Dome, 0.08 Low lux, Microphone, PoE: Drawing

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Mini Dome, 0.08 Low lux, Microphone, PoE: Ceiling Mounted

Additional Image for GEOVISION 1.3 Megapixel Network IP Camera: Mini Dome, 0.08 Low lux, Microphone, PoE: Wall Mounted

Model: GV-MFD120
Item #: 549
Manufacturer: GeoVision

MSRP: ~~$343.00~~
Our Price:

$283.00

(You save: $60.00)

This Model has been discontinued and replaced by a new model.
Please follow the link for the replacing model: GV-FE1501

1.3 Megapixel Progressive Scan Low Lux CMOS

0.08 Low Lux rating

Stream 1 from H.264 and MJPEG;

Stream 2 from H.264, MPEG4 and MJPEG

Up to 30 frames per second in megapixel resolution (1280 x 1024)

Built-in microphone

Micro SD/SDHC Card Slot

Active Tampering alarm

Motion detection

Privacy mask

IP address filtering

PoE (Power over Ethernet)

4.05mm Megapixel lens

Supports iPhone, iPad, Android & 3GPP

28 languages on Web interface

No SD/SDHC card slot & local storage function for Argentina

Camera
Image Sensor		1/3" progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Minimum Illumination: Color		0.08 Lux at F/1.5
Shutter Speed		Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance		Automatic, Manual (2800K ~ 8500K)
Lens
Megapixel		Yes
Day/Night		Yes (electronic)
Iris		Fixed
Focal Length		4.05 mm
Max Aperture		F/1.5
Mount		M12, Pitch 0.5 mm
Image Format		1/3"
Angle of view	Diagonal	80.4°
	Horizontal	65.4°
	Vertical	49.9°
Operation	Focus	No
	Zoom	No
	Iris	Fixed
Operation
Video Compression		H.264, MPEG4 and MJPEG
Video Streaming		Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG
Frame Rate		30 fps at 1280 x 1024* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity
Audio Compression		G.711, AAC (16 kHz / 16 bit)* AAC is only supported by GV-System V8.5 or later.
Sensor Input		No
Alarm Output		No
Video Resolution
Main Stream	4:3	1280 x 960, 640 x 480, 320 x 240
	16:9	1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16:9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
Network
Interface		10/100 Ethernet
Ethernet Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting		M12, Pitch 0.5 mm
Camera Angle Adjustment	Pan	-45° ~45°
	Tilt	0° ~ 90°
Temperature Detector		Yes
Connectors	Power	PoE, 3-pin terminal block
	Ethernet	Ethernet (10/100 Base-T), RJ-45
	Audio	built-in microphone
	Digital I/O	No
	Auto Iris	No
	Local Storage	Micro SD/SDHC memory card slot (for Class 6 card or above)
	TV-Out	No
	LED Indicator	4 LEDs: Link, ACT, Power, Status
General
Operating Temperature		0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity		10% to 90% (no condensation)
Power Source		PoE, DC 12V
Max. Power Consumption		4.5 W
Dimensions	Camera Body	ø 106 x 55.6 mm / 4.2 x 2.2 in
	Cable Length	1 m / 3.28 ft
	Max. Cable Diameter	ø 8 mm / 0.31 in
	Max. Connector Diameter	ø 28.5 mm / ø 1.12 in
Weight		275 g / 0.61 lb
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3af Power over Ethernet
PoE Power Supply Type		End-Span and Mid-Span
PoE Power Output		Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera live view, video recording, change video quality, zoom in/out, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language		Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese* Bulgarian, Dutch, Greek, Indonesian, Lithuanian, Norwegian, Persian, Romanian, Slovakian, Slovenian, Thai and Turkish are only supported in V1.07 or later.
Applications
Network Storage		GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
Mobile Phone support		GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone
Live Viewing		IE , GV-MultiView
CMS Server support		GV-Control Center, GV-Center V2, GV-VSM
