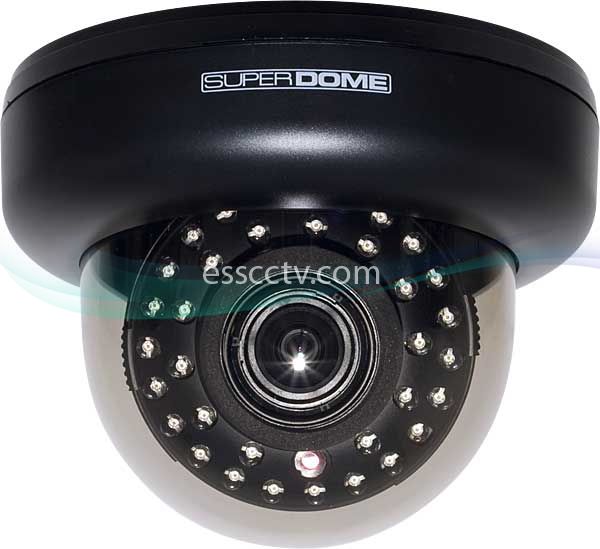

EYEMAX Indoor Dome IR Camera: SUPER-DOME 620 TVL, 35 SMART IR, 2D-DNR, 2.8~12mm lens, DUAL power
Images are for illustration purpose and may not show the actual product.
Model:
ID 6039V
Item #: 530
Manufacturer: Eyemax
MSRP:
$152.00
Our Price:
$115.00
(You save: $37.00)
- 1/3” Sony Super HAD II CCD
- 2.8~12mm Auto Iris Vari-focal Lens
- 620 TV Line in Color
- OSD - On Screen Display - Easy camera setup
- Easy Twist and Lock Installation : No drilling thru camera required (Drill hole guide included)
- 4-Axis Design : Flexible infrared coverage and easy accessto lens adjustment.
- 80 FT Infrared Range / 35 IR LED
- 2D DNR (2D Digital Noise Reduction) / Day & Night
- DUAL power: 12VDC or 24VAC
- Available in Black / White Case
SMART IR - Evenly spread Infrared Beam : Have you ever experienced with any infrared camera with intense and strong IR light, so you couldn't see anything in close range. STORM IR series specially designed IR camera solved the problem. Close and long range infrared image can't be any better than STORM IR.
3-AXIS DOME CONSTRUCTION : Accompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need.
OSD CAMERA SETUP : A small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.
 |
High-Res 620 TV Line
The camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
 |
2D DNR (2D DIGITAL NOISE REDUCTION)
Improved S/N ratio 50dB and more sharp and noiseless low light image quality provided by built-in noise reduction (2DDNR: 2D Digital Noise Reduction) function. |
| 620 TV Line |
| 1/3 inch Sony Super HAD II CCD |
| 811(H) x 508(V) 410K pixels (NTSC) |
| 768(H) x 494(V) 380K pixels (NTSC) |
| 2:1 Interface |
| More than 50 dB (AGC Off) |
| Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) |
| CVBS : 1.0 Vp-p Comp. 75Ω |
| 0 Lux with IR ON |
| ATW1 / ATW2 / AWC->SET / Manual Adjustable |
| Auto (1/60sec ~ 1/100,000sec) (NTSC) |
| Built-in |
| OFF / BLC / HLC Selectable |
| Low / Middle / High / Off Selectable |
| On / Off |
| Auto / Color / BW / EXT |
| OFF / ON (8 Zone) |
| OFF / ON (Motion size : 28 × 15.4 AREA) |
| ON / OFF |
| Adjustable |
| -10°C ~ 50°C / 30%~80% RH |
| -20°C ~ 60°C / 20%~90% RH |
| DC 12V / AC 24V |
| 5.5”(Ø) x 4.3”(H)SUPERDOME® IR Case |
