> Item #517

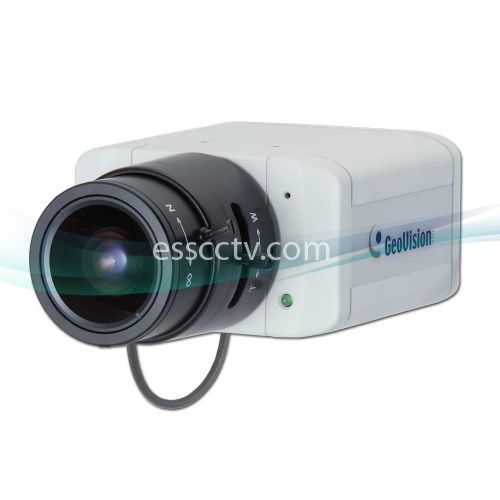

GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux: GV-BX120D

Additional Image for GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux: Top

Additional Image for GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux: Wall Mounted

Additional Image for GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux: Ceiling Mounted

Additional Image for GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux: Desk Mounted

Additional Image for GEOVISION 1.3 Mega-Pixel Box IP Camera, H.264, Microphone, ICR True Day/Night, PoE, 3G Phone Support, 0.15 Low Lux: Dimension

Model: GV-BX120D
Item #: 517
Manufacturer: GeoVision

MSRP: ~~$550.00~~
Our Price:

$389.00

(You save: $161.00)

This Model has been discontinued and replaced by a new model.
Please follow the link for the replacing model: GV-BX1500

1.3 megapixel progressive scan Low Lux CMOS

Super Low 0.15 lux rating (0.04 lux on B/W mode)

Stream 1 from H.264 and MJPEG

Stream 2 from H.264, MPEG4 and MJPEG

Up to 30 fps at 1280 x 1024

Built-in / external microphone

2-way audio

One sensor input and alarm output

TV-out support

Micro SD/SDHC Card Slot

Motion detection

Tampering alarm

Privacy mask

IP address filtering

DC 12V / PoE

Removable IR-cut filter for Day/Night function

Varifocal megapixel lens

Supports iPhone, iPad, Android & 3GPP

28 languages on Web interface

* No SD/SDHC card slot & local storage function for Argentina

Active Tampering Alarm

Tampered	Focus Change	Camera Shift

Camera
Image Sensor		1/3" progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Minimum Illumination	Color	0.15 Lux (1/30 sec), 0.08 Lux (1/5 sec)
	B/W	0.08 Lux (1/30 sec), 0.04 Lux (1/5 sec)
	IR ON	0 Lux
Shutter Speed		Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance		Automatic, Manual (2800K ~ 8500K)
Lens
Megapixel		Yes
Day/Night		Yes (with removable IR-cut filter)
Lens Type		Varifocal
Focal Length		2.8 ~ 12 mm
Maximum Aperture		F / 1.4
Mount		CS Mount
Image Format		1/3"
Angle of view	Diagonal	115° ~ 45.3°
	Horizontal	92° ~ 27.2°
	Vertical	69° ~ 20.4°
Operation	Focus	Manual (w / lock)
	Zoom	Manual (w / lock)
	Iris	DC
Operation
Video Compression		H.264, MPEG4 and MJPEG
Video Stream		Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG
Frame Rate		30 fps at 1280 x 1024 * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation
Audio Compression		G.711, AAC (16 kHz / 16 bit) * AAC is only supported by GV-System V8.5 or later.
Sensor Input		1 input (Dry Contact)
Alarm Output		1 Digital Output (200mA 5V DC)
Video Resolution
Main Stream	4:3	1280 x 960, 640 x 480, 320 x 240
	16:9	1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16:9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
Network
Interface		10/100 Ethernet
Ethernet Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting		CS-Mount
Connectors	Power	2-pin terminal block, PoE
	Ethernet	RJ-45
	Audio	1 In (Using the built-in microphone or externally connecting a microphone) 1 Out (Stereo phone jack, 3.5 mm / 0.14 in)
	Digital I/O	3-pin terminal block, pitch 2.5 mm / 0.1 in
	Auto Iris	DC drive
	Local Storage	Micro SD/SDHC memory card slot (for Class 6 card or above)
	TV-Out	BNC connector (640 x 480 resolution)
LED Indicator		2 LEDs: Power, Status
General
Operating Temperature		0 °C ~ 50 °C / 32 °F ~ 122 °F
Humidity		10% to 90% (no condensation)
Power Source		12V DC / PoE
Max. Power Consumption		7 W
Dimensions (L X W X H)		75.5 x75 x 54 mm / 2.97 x 2.95 x 2.13 in (without lens)
Weight		321 g / 0.71 lb
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type		End-Span
PoE Power Output		Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Picture in Picture, Wide Angle Lens Dewarping, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
Language		Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese * Bulgarian, Dutch, Greek, Indonesian, Lithuanian, Norwegian, Persian, Romanian, Slovakian, Slovenian, Thai and Turkish are only supported in V1.07 or later.
Applications
Network Storage		GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
Mobile Phone Support		GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone.
Live Viewing		IE , GV-MultiView
CMS Server support		GV-Center V2, GV-VSM, GV-Control Center
