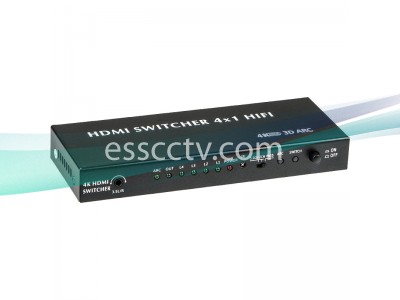

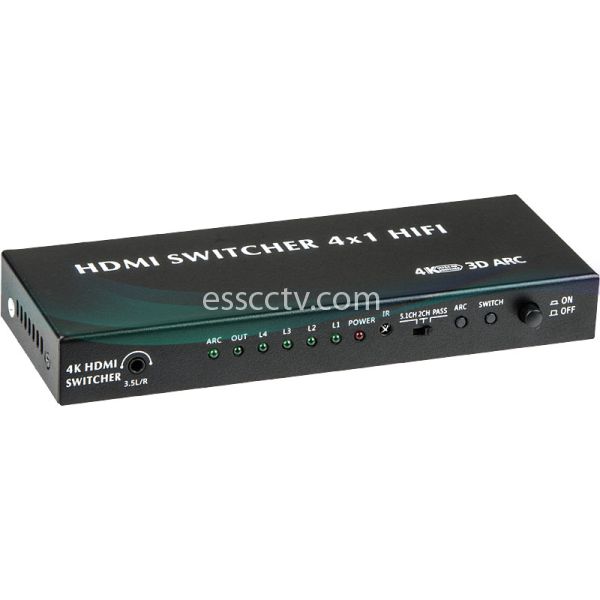

HDMI 4 in 1 out Switch, Support 4K 2K, Audio Out, Power Adpater INCLUDED
.jpg)
Images are for illustration purpose and may not show the actual product.
Additional Images:
.jpg "HA 1SW0401")
.jpg)
.jpg)
.jpg)
.jpg "Power Supply")
Model:
HA 1SW0401
Item #: 515
MSRP:
$99.00
Our Price:
$49.00
(You save: $50.00)
KEY FEATURES
- 4X1 HDMI Switcher 1.4V with ARC
- Support 4kx2k/1080P/3D,Support ARC
- Support deep color 30bit, 36bit,48bit
- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support signal re-timing
- Support input up to 10-15 meters using AWG24 HDMI standard cable length, output up to 15-20 meters using AWG24 cable length, No loss of quality
- High Fidelity Function connects multi-HD sources with one HD disply end
- Support extra audio out by the optical cable
- Inputs can be switched with the IR remote control, also it can be controlled by two buttons.
| 4Kx2K/1080p/3D |
| Support Video Color Format |
color 30bit,36bit,48bit |
| Support Audio Format |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Audio Output |
SPDIF and 3.5 R/L |
| Max Transmission Bandwidth |
340MHz |
| Max Baud Rate |
10.2Gbps |
| Input Cable Distance |
≤15m AWG24 HDMI standard cable |
| Output Cable Distance |
≤15m AWG24 HDMI standard cable |
| Max Working Current |
430mA |
| Power Adapter Format |
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature Range |
-15 to +55°F |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Dimension (L × W × H) |
180×65×23 (mm) |
| Weight |
290g |
