LENS OPTIONS
Type |
Board Lens |
Pinhole Lens |
Door View Lens |
||||||
P1 |
P3 |
P4 |
|||||||
Focal Length | 2.97 | 3.6 | 6 | 8 | 12 | 3.7 | 3.7 | 4.3 | 1.78 |
Aperture | F2.0 | F2.0 | F2.0 | F2.0 | F2.2 | F2.0 | F2.0 | F2.0 | F3.0 |
Angle of View |
130Ëš |
92Ëš |
53Ëš |
40Ëš |
28Ëš |
90Ëš |
90Ëš |
78Ëš |
170Ëš |
Signal System | NTSC |
Image Sensor | 1/3” 960H SONY EXview HAD CCD II |
Scanning System | 2:1 Interlace |
Horizontal Resolution | 750TV Lines |
Scanning Frequency (H) | 15.734 KHz |
Scanning Frequency (V) | 59.94 Hz |
Total Pixels (H x V) | 1020 x 508 |
Effective Pixels (H x V) | 976 x 494 |
Synchronization | Internal |

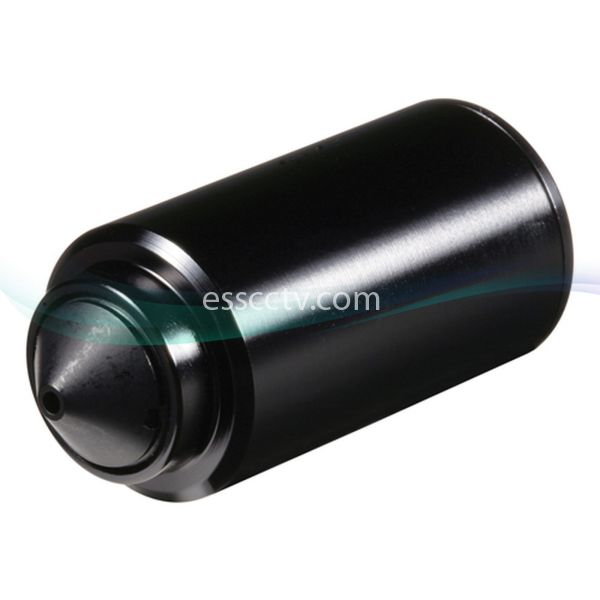

Lens | 3.7 or 4.3mm Pinhole |
Lens Type | Fixed Board Lens |
S/N | More than 50dB (AGC: Off) |
Gamma | r = 0.45 |
Min. Illumination | 0.1 Lux |
Shutter Speed | 1/60 ~ 1/100,000 sec |
Day & Night | Digital Day & Night |
Day & Night Function | Auto |
IP Rating | IP67 (Water Resistant) - E190NUWX Only |
Video Output Level | 1.0 Vp-p Composite (75 Ω) |
DNR | 2D DNR |
Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50°C) |
Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
Humidity | Less than 80% RH |
Power Supply | DC 12V (±10%), Max. 70mA |
Dimension | Ø0.75 x 2.14 inch (Ø19 x 54.4 mm) |
Weight | 0.15 lbs (68 g) |
