Compact and versatile 802.3at POE switches
* CAMSWITCH 4 PLUS REPLACES OUTREACH QUAD and CAMSWITCH QUAD.
CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension, or a local power supply can be specified for maximum power budget.

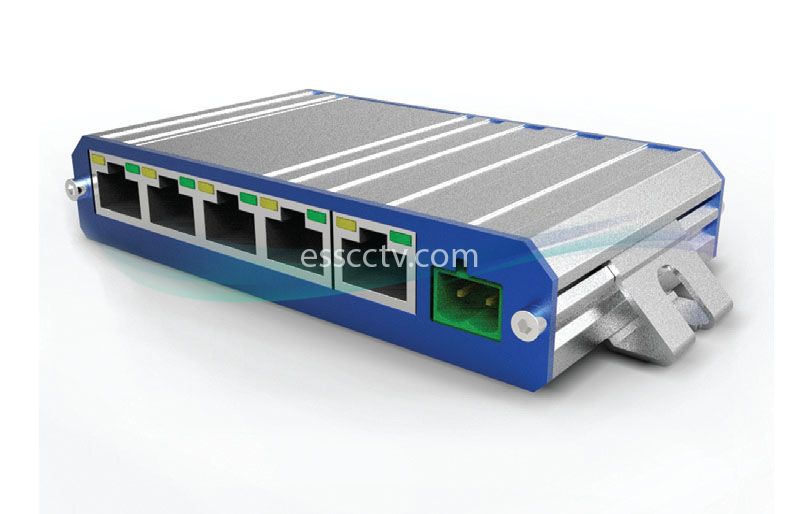

CAMSWITCH 4 Plus features 4 802.3at POE ports, and a 5th port for downlink.
Application Diagram (click to enlarge):
Network
5/10 port unmanaged 10/100 switch
Auto-configuring for speed (10BASE-T or 100BASE-T) and duplex
Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
VCS-8P2 supports VLAN trunking
Power
Device power 3W
POE outputs: IEEE802.3af / IEEE802.3at compliant
POE input: IEEE802.3af compliant / custom high power
Total camera power budget:
40 watts - VPSU-57V-800 power supply
78 watts - VPSU-57V-1500 power supply
25 watts - VOR-OSP POE injector
10 watts - 802.3af POE switch
Dimensions
W: 110m / 131mm with side clips
D: 64mm / 76-80mm including connectors
H: 22mm (VCS-4P!) / 40mm (VCS-8P2)
Weight 135g (VCS-4P1) / 225g (VCS-8P2)
