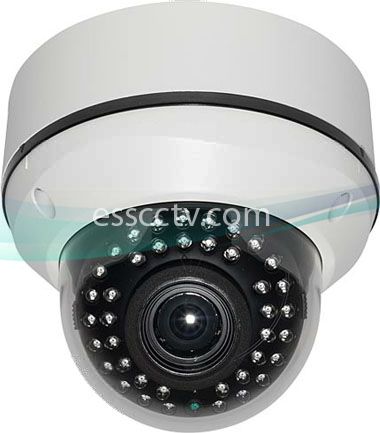

* SOLD OUT * HD-SDI Outdoor Dome IR camera: 2 Megapixel Full HD 1080p image, 2.8~12mm Lens, 40 IR LED

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: XVI 232V
Item #: 479

MSRP: ~~$399.00~~
Our Price:

$215.00

(You save: $184.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: XVI-2542FV

This Model has been discontinued and replaced by a new model
Please follow the link for the replacing model: HSC V2542VR

1/3 inch SONY CMOS

2.8~12mm Auto Iris Vari-focal lens

1080p Resolution

40 IR LEDs

Min Illumination : 0 Lux

Horizontal Resolution 1000 TVL

WDR: wide dynamic range

12V DC

HD-SDI cameras are recommended to use only with RG59/RG6 cables with crimp/compressed connectors

What is the benefit of HD-SDI cameras?

HD-SDI stands for High-Definition Serial Digital Interface.

HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.

Actual Image Recorded

Digital Zoom on above image 1

Digital Zoom on above image 2

Resolution	HD-SDI(1080P, 720P) / 1000 TV Line Over
Sensor	1/3“ SONY CMOS
Total Pixels	2010(H) X 1108(V) = 2,227,080
Effective Pixels	1944(H) X 1092(V) = 2,122,648
Scanning System	Progressive Scan
S/N (Y Signal)	More than 52 dB(AGC Off)
Video Output	SMPTE292M (HD-SDI) / CVBS : 1.0Vp-p (75ohm)
Min. Illumination	0 Lux at IR On
White Balance	AUTO / AUTO EXT / PUSHING / MANUAL
Electronic Shutter Speed	AUTO / MANUAL(1/30sec ~ 1/30,000sec)
Brightness	Adjustable (0~20 Step)
Sens-up	OFF / X2 / X3 / X4
DNR	OFF / LOW / MIDDLE / HI
WDR / BLC	OFF / WDR / BLC
HLM	OFF / SET
ACE	OFF / ON
Day & Night	AUTO (Day Night TIME Change), COLOR, B/W
Privacy	OFF / ON (28 Zone)
Motion Detection	OFF / ON
D. Zoom	0 ~ X112
FLIP	OFF / ON
FREEZE	OFF / ON
Language	ENGLISH
Sharpness	ADJUSTABLE (0~10 STEP)
Mirror	ON / OFF
COMM.	RS-485(PELCO-D)
Operating Temperature / Humidity	-10°C~+50°C (14°F ~ 122°F) / 30% ~ 80% RH
Storage Temperature / Humidity	-20°C~+60°C (-4°F ~ 140°F) / 20% ~ 90% RH
Power	DC 12V
HD-SDI	100~150m
Transmission range	Max transmission range is depends on the cable manufacturer and the installtion environment.
