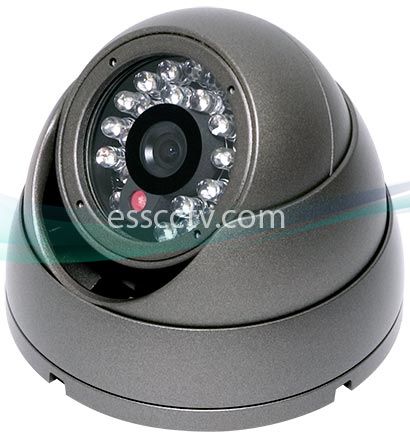

EYEMAX Outdoor Dome IR Camera: 700 TVL SONY EFFIO DSP, 24 IR LED, optional Wide Lens
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
IB 6325
Item #: 477
Manufacturer: Eyemax
MSRP:
$161.00
Our Price:
$69.00
(You save: $92.00)
- 3-Axis Construction : By adjusting '3-Axis' control, you get a straight view regardless whether camera is installed on a wall or ceiling
- 1/3" Sony Super EXVIEW HAD II color CCD sensor
- High Resolution - 700 (H) TV Line in Color
- SONY EFFIO DSP
- 24 IR LEDs (approximately 70 FT Infrared Range)
- Minimum Illumination - 0 Lux with IR on
- 2.9mm / 3.6mm / 6mm Fixed Lens
- DC 12V power required
 |
High-Res 700 TV Line
The camera is powered by Sony Effio-E chipset that is embodied the top grade of the world at 700 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
3-AXIS CAMERA CONSTRUCTION
 Where most dome cameras are 2-Axis, the 3-Axis feature included in these models also insures that you can maneuver the camera at an angle that would be most beneficial when viewing images from these cameras.
|
LOW CEILING INSTALLATION. NO PROBLEM
 With its unique design, there is no trouble to angle the camera straight-forward on low ceiling. This cannot be done with ordin
|
| Effio-E™ |
| 700 TV Line |
| Sony 1/3 inch ExView HAD CCD II |
| 1020(H) × 508(V) 520K Pixel |
| 976(H) x 494(V) 480K Pixel |
| 2:1 Interlace |
| Horizontal : 15.734Khz / Vertical : 59.94Hz |
| More than 52 dB (AGC off) |
| CVBS : 1.0Vp-p / 75Ω |
| 0 Lux (with IR On) |
| ATW |
| Auto (1/60 sec ~ 1/100,000 sec) |
| Auto |
| -10°C~+50°C(14°F ~ 122°F) / 30% ~ 80% RH |
| -20°C~+60°C(-4°F ~ 140°F) / 20% ~ 90% RH |
| DC 12V |
