High-Res 700 TV LineThe camera is powered by Sony Effio-E chipset that is embodied the top grade of the world at 700 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
 |
2D DNR (2D DIGITAL NOISE REDUCTION)Reduces the image noise in order to improve the image quality of the camera, in particular, it reduces the noise which is generated under low-brightness shooting conditions and other high-gain states. |
 |
ATR : Adaptive Tone ReproductionATR improves the visibility of the entire picture by providing the optimum gradation compensation. |
 |
HLC : High light CompensationImproves the visual recognition of license plates and other such objects by suppressing of masking strong light sources (such as the headlights of automobiles) in dark places. |
OSD CAMERA SETUPIt has have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera. |
|

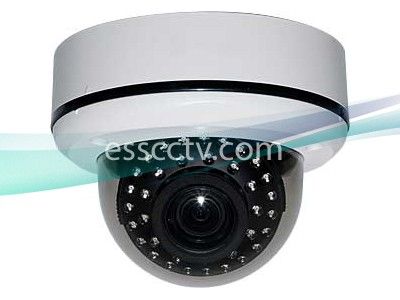

3-AXIS DOME CONSTRUCTIONAccompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need |
| Lens | 2.8~12mm Auto-Iris Vari-focal lens |
| Resolution | 700 TV Line |
| Sensor | Sony 1/3 inch ExView HAD II |
| Total Pixels | 1020(H) × 508(V) 480K Pixel |
| Effective Pixels | 976(H) x 494(V) 520K Pixel |
| Scanning System | 2:1 Interlace |
| Synchronization | Internal |
| Frequency | Horizontal : 15.734Khz / Vertical : 59.94Hz |
| S/N (Y signal) | More than 52 dB (AGC off) |
| Video Output | CVBS : 1.0Vp-p / 75Ω |
| Min. Illumination | 0.1 Lux at F1.2 / 0 Lux (with IR On) |
| White Balance | ATW / PUSH / USER1 / USER2 / ANTI CR / Manual / PUSH-LOCK |
| Electronic Shutter Speed | Auto / Manual / 1/60 sec ~ 1/100,000 sec (NTSC) |
| OSD | Built-in |
| Backlight Compensation (BLC) | BLC / HLC / OFF Selectable |
| Adaptive Tone Reproduction | ON / OFF (Level Adjustable) |
| 2D DNR (2D Digital Noise Reduction) | ON / OFF (Level Adjustable) |
| Day & Night | Auto / COLOR / B&W |
| Privacy Mask | On / Off (8 Zone) w/ motion on : 4 zone |
| Motion detection | On / Off (4 Zone) |
| Image Conversion | On / Off |
| Operating Temperature / Humidity | -10°C~+50°C(14°F ~ 122°F) / 30% ~ 80% RH |
| Storage Temperature / Humidity | -20°C~+60°C(-4°F ~ 140°F) / 20% ~ 90% RH |
| Power | DC 12V |
| Dimensions | IP68 Case / 5.7"(D) × 4.6"(H) |
