High-Res 620 TV LineThe camera is powered by NEXT chipset that is embodied the top grade of the world at 620 TVL resolution be own image signal technology which is to change the frequency of luminance signal adaptively by a monitoring sector. |
 |

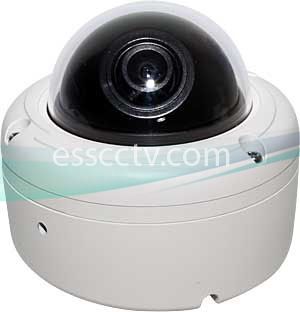

3-AXIS DOME CONSTRUCTIONAccompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need |
| Lens | 3.6mm Fixed |
| Resolution | 620 TV Line |
| Sensor | Sony 1/3 inch Super HAD II CCD |
| Total Pixels | 811(H) x 508(V) 410K Pixel |
| Effective Pixels | 768(H) x 494(V) 380K Pixel |
| Scanning System | 2:1 Interlace |
| Frequency | Horizontal : 15.734Khz / Vertical : 59.94Hz |
| S/N (Y signal) | More than 50 dB (AGC off) |
| Video Output | CVBS : 1.0Vp-p / 75 ohm |
| Min. Illumination | 0.1 Lux at F1.2 (Color) / 0.01 Lux (B/W) |
| White Balance | ATW |
| Electronic Shutter Speed | Auto / Manual - 1/60 sec ~ 1/120,000 sec (NTSC) |
| Gain Control | Low / Middle / High / Off Selectable |
| Day & Night | Auto |
| Operating Temp. / Humidity | -10°C~+40°C(14°F ~ 104°F) / 30% ~ 80% RH |
| Storage Temp. / Humidity | -20°C~+60°C(-4°F ~ 140°F) / 20% ~ 90% RH |
| Power | 12VDC |
| Casing / Dimensions | Aces Case (IP68) / 3.3"(D) × 2.76"(H) (Surface Mount) 3.3"(D)× 1.77"(H) (Flush Mount) |
