> Item #430

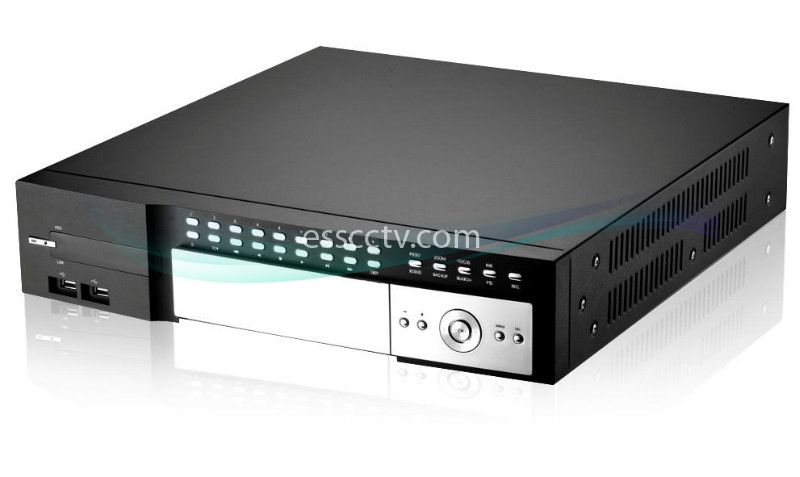

EYEMAX HX-Series 16ch video DVR System 480 FPS real-time 960H recording, HDMI out

Images are for illustration purpose and may not show the actual product.

Additional Images:

Model: HX-960H-16
Item #: 430
Manufacturer: Eyemax

MSRP: ~~$995.00~~
Our Price:

$675.00

(You save: $320.00)

This Model has been discontinued.
Please follow the link for our recommended replacement: DVST PTS960H-16

Pentaplex video surveilance : Live, Recording, Searching, Network and Backup

Dual Srreaming support

Easy backup - (USB, CD, DVD, E-SATA, FTP, NETWORK)

- NTFS file system support

- Schedule backup

Max 4 HDD support

System Auto Recovery

- H/W watchdog

- S/W file system auto recovery

User friendly Graphic User Interface

- Multiple language support Email notification

Search Mode : Normal / Calendar / Event

Digital zoom in playback

Live view in playback

All channel simultaneous real-time playback

Web viewer on Windows OS and Mac OS

i-CEN's(CNS) support up to 128 channels

Operating System	Embedded LINUX
System Resources	Pentaplex function : Live, Recording, Playback, Backup, Remote access
Analog Camera Input	16 channel
Video Output	1 HDMI, 1 VGA, 1Spot(Composite), Loop out(BNC)
Audio Input	16 channel
Audio Output	RCA × 1, HDMI × 1
Bidirectional Talk	1 channel Input, 1 channel Output
Resolution	1920 × 1080(HDMI), 1280 × 1024 (VGA)
Screen Division	1/4/9/13/16
Operation Control	Mouse, Key buttons, Remote controller, PTZ controller
Recording Mode	Continu ous, Alarm, motion, Event, Schedule
Storage Media	Internal ODD × 4ea
ODD	Internal ODD × 1ea (Optional)
Back Up	CD / DVD / USB / eSATA / Network
Alarm Input / Output	16 / 4
Control devices	IR Remote control, Mouse, Front keys
eSATA	1 External SATA port
USB	2 Port(Mouse, Backup)
Ethernet	RJ-45 port(10/100M/1000M)
Display Speed	480 fps@CIf
	480 fps@HD1
	480 fps@D1, 480 fps@960H
Recording Speed	480 fps@CIf
	480 fps@HD1
	480 fps@D1, 480 fps@960H
Video Codec	H.264 high profile
Audio Codec	G.711 ADPCM
Client	Smart Phone Viewer, Web Viewer (IE, Safari), CMS
Power Source	SMPS / AC 100 ~ 240V, 50 / 60Hz
Operation Temperature	32°F ~ 104°F (0°C ~ 40°C)
Operation Humidity	0%RH ~ 80%RH
Dimension (W×D×H mm)	430×440×88mm
