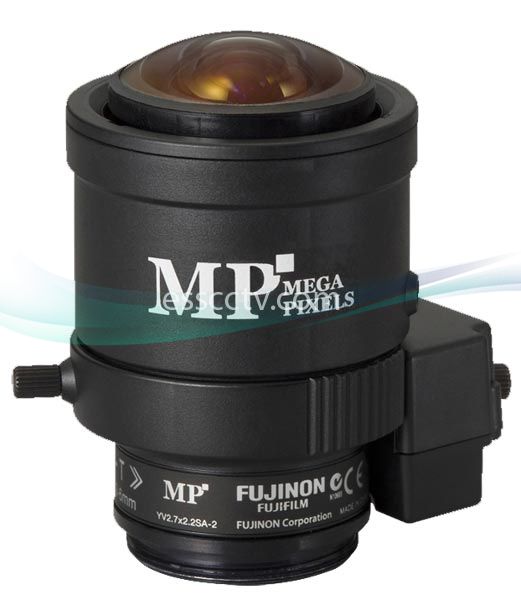

FUJINON Megapixel Lens - YV2.7x2.2SA-SA2: 2.2~6mm Super-WIDE, 3 MP support, Auto-Iris, Built-In ND Filter
Images are for illustration purpose and may not show the actual product.
Additional Images:
Model:
LA MPFU2206AS
Item #: 427
Manufacturer: Fujinon
MSRP:
$191.00
Our Price:
$89.00
(You save: $102.00)
- Manufacturer Part Number: YV2.7x2.2SA-SA2
- 2.2~6mm Vari-Focal Adjustable Lens
- Wide Angle upto 120 degrees
- Megapixel Lens supporting 3 MP
- CS mount
- Built-in ND filter
- DC Auto Iris
- Metal Mount
- Aspherical Lens
- F1.3 Wide Aperture Rate
- RoHS Compliant
High image-quality monitoring with optical performance supporting 3 megapixels. WIDE 2.2mm, achieving a horizontal field angle of 120 degrees (when used on 1/3 cameras). Compact and lightweight design, best suited for use with dome cameras. Designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. Built-in ND filter of T360, supporting high sensitivity cameras.
ND Filter
ND filter allows greater flexibility to change the aperture, exposure time and/or motion blur of subject in different situations and atmospheric conditions.
| CS |
| 2.2 mm - 6 mm (2.7x) |
| Manual |
| F1.3 - T360 (Equivalent to F360) |
| Auto (DC Type) (*1) |
| Manual |
| 7.70 mm |
| -452 mm |
| 1075 mm × 638 mm |
| 266 mm × 196 mm |
| 638 mm × 429 mm |
| 196 mm × 145 mm |
| 1324 mm × 479 mm |
| 293 mm × 158 mm |
| 731 mm × 336 mm |
| 214 mm × 118 mm |
| 120°00′ × 91°36′ |
| 46°26′ × 34°59′ |
| 91°36′ × 69°21′ |
| 34°59′ × 26°18′ |
| 129°43′ × 75°23′ |
| 50°30′ × 28°38′ |
| 99°23′ × 56°53′ |
| 38°04′ × 21°31′ |
| ∞ - 0.3 m |
| - |
| 55 g |
| 190 Ω |
| 500 Ω |
| 23 mA (Max.) at DC 4V |
|
