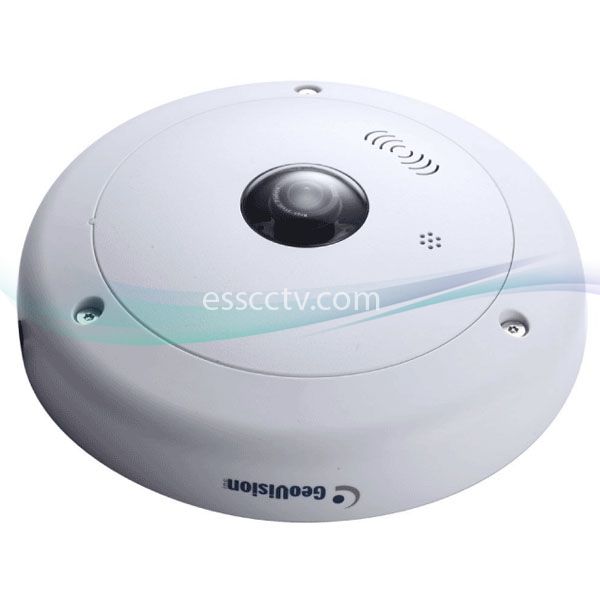

GV-FE5302 is an indoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling, wall, wall corner and the pole. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System, providing advanced monitoring and video management features.
|
|
Note: 1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches. 2. Specifications are subject to change without notice. |
Brand | Geovision |
Model | GV-FE5302 |
Image Sensor | 1/2.5" Progressive CMOS sensor |
Megapixels | 5 MP |
Lens | 1.32mm |
Minimum Illumination | 0.15 Lux (Color), 0.10 Lux (B/W) |
Electronic Shutter Speed | Automatic , Manual (1/5 – 1/8000 sec.) |
Day & Night | Yes (with removable IR-cut filter) |
Focus | Fixed |
Video Compression | H.264 / MJPEG |
Audio Compression | G.711, AAC (optional) |
Max. Image Resolution | 2560 (H) x 1920 (V) |
WDR | Yes |
Frame Rate | 10 fps at 2560 x 1920 |
Storage | MicroSD card slot |
Audio | 2 way audio |
Communication Interface | 10/100 Ethernet |
TV-out | None |
Power Supply | 12V DC / 24V AC / PoE (IEEE802.3af) |
Power Consumption | 8.6 W |
Operating Temperature | 0 °C ~ 50 °C (32 °F ~ 122 °F) |
Humidity | 10% to 90% (no condensation) |
Vandal Resistance | IK10+ |
Dimensions | 6.55” x 1.93” |
Weight | 0.9 lb |
