> Item #355

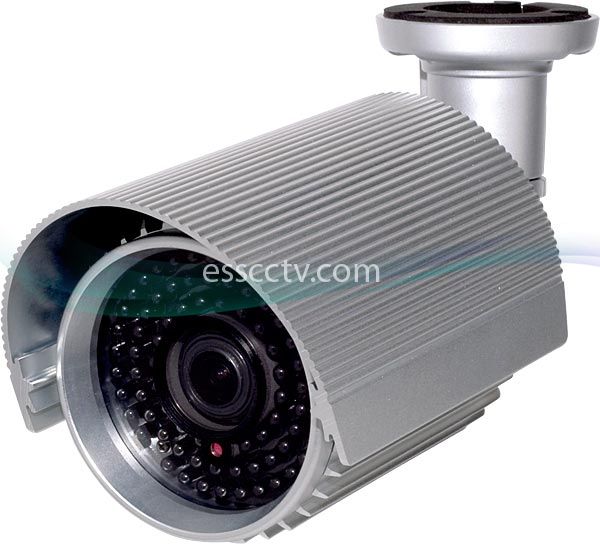

EYEMAX IR 2790 Outdoor Night-Vision Camera: 105 IR 200 FT Long IR Range, Cable-Concealed Bracket

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: IR 2790
Item #: 355
Manufacturer: Eyemax

MSRP: ~~$222.00~~
Our Price:

$135.00

(You save: $87.00)

The item has been discontinued.
Please contact us for our recommended replacement.

1/3” Sony Super HAD CCD with Next Process Chipset

6mm Fixed Lens

380 TV Line in Color

200ft Infrared Range / 105 IR LED

Weather-Resistant, ideal for outdoor use

Hidden Cable Mount bracket included : Invisible Video and Power cable

Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)

DC 12V / 2000mA or higher Recommended

WEATHER-RESISTANT & SUN-VISOR / HIDDEN CABLE MOUNT

The built-in removable sun shields that will help ensure you a clear picture and protect the camera from the elements. Hidden Cable Mount is another nice feature about the camera. Video and power cable is run thru inside of the mount to prevent it from getting damaged.

Resolution	380(Color) / 420(B/W) TV Lines Horizontally
Image Pick-up Device	Sony 1/3 inch Super HAD CCD with NEXT process chip
Picture Elements	537(H) x 505(V) 270K pixels
Effective Picture Elements	510(H) x 492(V) 250K pixels
Scanning Area	3.65(H) x 2.74(V) mm
Scanning System	2:1 Interface/ 525 Lines / 60 Fields / 30 Frames
Iris Mode	ESC
Lens	6mm Fixed Lens
Minimum Illumination	0.3 Lux at F1.2 / 0 Lux (IR On)
Sync. System	Internal Only
Video Output	1.0 Vp-p Comp. 75Ω
Electronic Iris	1/60 sec ~1/100,000 sec
Backlight Compensation	Built-in
Gain Control	Built-in
White Balance	AWB
Day & Night	Auto / On
IR LED	200ft / 105 IR LED
Gamma	r=0.45
S/N Ratio	50dB (AGC Off, Eight On)
Operating Temp.	14°F ~ 122°F
Power Source	DC 12V
Power Consumption	120mA (IR LED off) / 2500mA (IR LED On)
