* The item has been discontinued.
Please contact us for our recommended replacement.

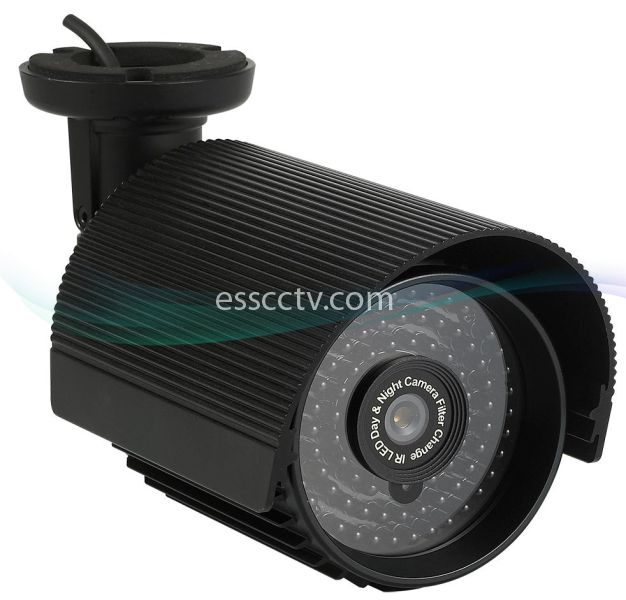

No more having a hard-time installing mount. Install base ring on the wall first, then just screw bolts with provided L-shaped wrench simply and easily.
The built-in removable sun shields that will help ensure you a clear picture and protect the camera from the elements. Hidden Cable Mount is another nice feature about the camera. Video and power cable is run thru inside of the mount to prevent it from getting damaged.
Use a day & night or monochrome cameras for the IR corrected lenses. Regular color cameras will not be affected by the IR corrected lens. When using the day/night or monochrome cameras, nearly any outdoor, as well as some indoor applications, will require, or at least benefit from using IR corrected lenses. This is because many natural light sources also contain infrared light, lighting changes with a higher infrared, lower infrared, or without infrared at all. When using ordinary lenses, the result is a blurred, or in a worst case scenario, a completely unfocused picture.
| Resolution | 380(Color) / 420(B/W) TV Lines Horizontally |
| Image Pick-up Device | Sony 1/3 inch Super HAD CCD with NEXT process chip |
| Picture Elements | 537(H) x 505(V) 270K pixels |
| Effective Picture Elements | 510(H) x 492(V) 250K pixels |
| Scanning Area | 3.65(H) x 2.74(V) mm |
| Scanning System | 2:1 Interface/ 525 Lines / 60 Fields / 30 Frames |
| Iris Mode | ESC |
| Lens | 6mm Fixed Lens |
| Minimum Illumination | 0.3 Lux at F1.2 / 0 Lux (IR On) |
| Sync. System | Internal Only |
| Video Output | 1.0 Vp-p Comp. 75Ω |
| Electronic Iris | 1/60 sec ~1/100,000 sec |
| Backlight Compensation | Built-in |
| Gain Control | Built-in |
| White Balance | AWB |
| Day & Night | Auto / On |
| IR LED | 150ft / 77 IR LED |
| Gamma | r=0.45 |
| S/N Ratio | 50dB (AGC Off, Eight On) |
| Operating Temp. | 14°F ~ 122°F |
| Power Source | DC 12V |
| Power Consumption | 120mA (IR LED off) / 2000mA (IR LED On) |
