> Item #340

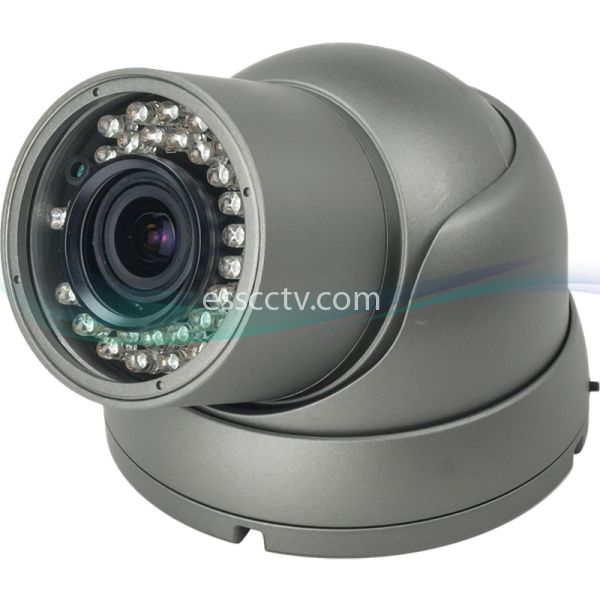

HD-SDI Outdoor Turret Dome IR camera: 2 Megapixel Full HD 1080p image, 2.8~12mm, 35 IR LED

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Additional Images:

Additional Image for HD-SDI Outdoor Turret Dome IR camera: 2 Megapixel Full HD 1080p image, 2.8~12mm, 35 IR LED: XIB-2032FV

Additional Image for HD-SDI Outdoor Turret Dome IR camera: 2 Megapixel Full HD 1080p image, 2.8~12mm, 35 IR LED: front

Additional Image for HD-SDI Outdoor Turret Dome IR camera: 2 Megapixel Full HD 1080p image, 2.8~12mm, 35 IR LED: Dimension

Model: XIB-2032FV
Item #: 340
Manufacturer: Eyemax

MSRP: ~~$190.00~~
Our Price:

$116.00

(You save: $74.00)

1/3 INCH SONY COMS

HD-SDI: High Definition Serial Digital Interface (1080P, 720P)

High Resolution (1000 TV Line OVER)

0 Lux at IR On (IR LED Varifocal 35 pcs)

Upgraded Weather-proof Housing

OSD Controlled

35 Smart IR / MDIR (Motion Detection IR)

DNR (Digital Noise Reduction)

True Day & Night (ICR) Function

Easy Installation

DC Auto IRIS & TDN V/F Lens 2.8~12mm

12V DC

HD-SDI cameras are recommended to use only with RG59/RG6 cables with crimp/compressed connectors

What is the benefit of HD-SDI cameras?

HD-SDI stands for High-Definition Serial Digital Interface.

HD camera delivers a megapixel quality video without requiring IT network bandwidth, dropping packets, or reduced resolution from compression. HD camera provides superior surveillance environment compared to conventional VGA camera. HD cameras are easy to work with, and installers can migrate from analog cameras without any additional training.

Actual Image Recorded

Digital Zoom on above image 1

Digital Zoom on above image 2

Resolution	HD-SDI(1080P, 720P) / 1000 TV LINE OVER
Sensor	1/3" SONY CMOS
Total Pixels	2010(H) X 1108(V) = 2,2M Pixel
Effective Pixels	1944(H) X 1092(V) = 2,1M Pixel
Scanning System	PROGRESSIVE
S/N (Y signal)	More than 52 dB (AGC Off)
Video Output	SMPTE292M (HD-SDI) / (CVBS: 1.0Vp-p (75Ω) : Option)
Min.Illumination	0 Lux at IR On
White Balance	AUTO / AUTO EXT / PUSHING / MANUAL
Electronic shutter speed	AUTO / Manual (1/30sec ~ 1/60,000sec)
Brightness	ADJUSTABLE (0 ~ 20 STEP)
SENS_UP	OFF / X2 / X3 / X4
DNR	OFF / LOW / MIDDLE / HI
WDR/BLC	OFF / WDR / BLC
HLM	OFF / SET
ACE	OFF / ON
Day & Night	AUTO (Day Night TIME Change) , COLOR , B/W, EXTERN, MDIR
Smart IR	OFF / ON
Privacy	OFF / ON (31 Zone)
Motion Detection	OFF / ON
D.ZOOM	0 ~ X127
FLIP	OFF / ON
FREEZE	OFF / ON
Image Conversion	OFF / ON
Language	ENGLISH
Sharpness	ADJUSTABLE (0 ~ 10 STEP)
COMM.	RS-485(PELCO-D)
Operating Temperature/Humidity	14°F ~ 122°F(-10'C~+50'C) / 30%~80% RH
Storage Temperature/Humidity	14°F ~ 122°F(-20'C~+60'C) / 20%~90% RH
Power	DC12V Only
Signal	The distant difference is occurred according to cable option and other circumstances. (based on RG59: 100M)
