KT&C Color Zoom Camera - DSS, BLC, AGC, 550TVL, 0.1Lux, 12V, x18 Optical
KT&C USA

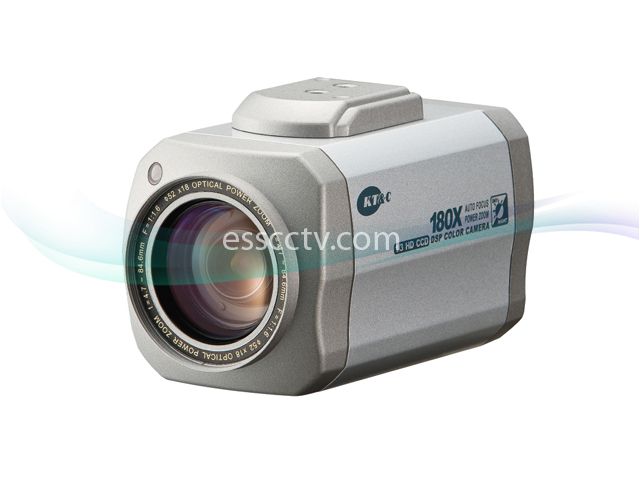

KT&C Color Zoom Camera - DSS, BLC, AGC, 550TVL, 0.1Lux, 12V, x18 Optical
Images are for illustration purpose and may not show the actual product.
Model: KPC-ZA180NH
Item #: 327
Manufacturer: KT&C USA
MSRP: $499.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Power Supply:

  • 1/3" Sony Super HAD CCD â…¡
  • High resolution of 550TVL
  • 18X Optical Zoom Lens
  • F1.6(W), F2.8(T), f=4.7~84.6mm / Auto Focus
  • Min. Illumination of 0.1 Lux : Color, 0.03 Lux : B/W
  • True Day & Night with ICR Mechanism
  • Intensified DSS Accumulation Field Number up to 128x
  • Privacy Image Masking up to 15 areas
  • Preset : 512(Internal), 128(External)
  • Muti-Language OSD Menu(English/Chinese/Russian/Spanish/German)

 SPECIFICATION



Model Name
KPC-Z180
Image Device 1/3" SONY Super HAD CCD II
Scanning System 2:1 Interlace
Scanning Frequency NTSC : 15.734 KHz(H), 59.94 Hz(V)
PAL : 15.625 KHz(H), 50 Hz(V)
H. Resolution 550 TVL
Total Pixels NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)
Effective Pixels NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)
S/N Ratio More than 50dB (AGC Off, DSS Off)
Min. Illumination 0.1 Lux (Color) / 0.03 Lux (B/W) 30 IRE @ Wide End, AGC Super, DSS Off
Sync. System Internal
Gamma γ = 0.45
Video Output 1.0 Vp-p Composite (75Ω)
Lens 18X Zoom Lens (f=4.7~84.6mm, F1.6~F2.8)
Focus Mode Auto / Manual / Push
Min. Object Distance 0.01mm (Wide), 1M (Tele)
Digital Zoom Ratio 10X
Preset 512(Internal), 128(External)
Electronic Shutter NTSC : 1/60 ~ 1/100,000 sec  /  PAL : 1/50 ~ 1/100,000 sec
Digital Slow Shutter Off, 2~128 Field
BLC Off / On (Level Adjustment, Area Selection)
AGC Off / Low / Mid / High / Super
Day & Night True Day & Night with ICR Mechanism (Auto / Color / B/W / External)
Motion Detection 5 Zones
Privacy Masking 15 Zones
White Balance ATW / Indoor / Outdoor /Push Auto / Manual (R Gain, B Gain) / AWB
OSD Built-in
Language English / Chinese / German / Russian / Spanish
Protocol KT&C, Pelco-D/P, VISCA, LG Compatible
External Control A/D KEY, RS-485, RS-232C TTL, PTZ Controller
Operating Temperature 14ËšF ~ 122ËšF (-10ËšC ~ +50ËšC)
Storage Temperature -4ËšF ~ 140ËšF (-20ËšC ~ +60ËšC)
Humidity Less than 80%
Power Comsumption DC12V (±10%), Max. 300mA
Dimensions (mm) KPC-ZA180 : 67 (W) X 67 (H) X 124 (D)
KPC-ZM180 : 55 (W) X 60 (H) X 118 (D)
KPC-ZS180 : 55 (W) X 60 (H) X 93.5 (D)
Weight KPC-ZA180 : Approx. 479 g
KPC-ZM180 : Approx. 290 g
KPC-ZS180 : Approx. 262 g



 DIAGRAM

 FUNCTION
