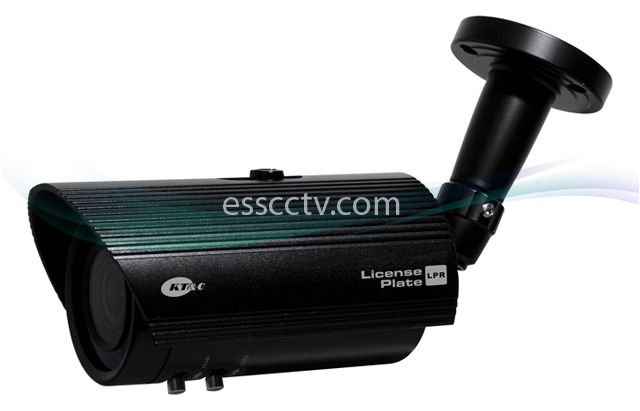

KT&C License Plate Capture Camera - 600 TVL, 20 LED, 80 FT, Dual Voltage, Capture to 35MPH
KT&C USA
KT&C License Plate Capture Camera - 600 TVL, 20 LED, 80 FT, Dual Voltage, Capture to 35MPH
Images are for illustration purpose and may not show the actual product.
Additional Images:
Additional Image for KT&C License Plate Capture Camera - 600 TVL, 20 LED, 80 FT, Dual Voltage, Capture to 35MPH: KPC-LP500NH Additional Image for KT&C License Plate Capture Camera - 600 TVL, 20 LED, 80 FT, Dual Voltage, Capture to 35MPH:
Model: KPC-LP500NH
Item #: 322
Manufacturer: KT&C USA
MSRP: $477.00
Our Price:
Why can't I see the price?
ESS CCTV follows our manufacturers' MAP (minimum advertised price) policy. Therefore, for the products protected by a MAP policy, our price will show and applied only if you:
  • are registered and logged in to your account.
  • add the items to the cart. (KT&C products require login)

You can register or login for your account here:
Register Account / Account Login
Our research shows that many websites are not following the MAP policy, and they may be listed as an unauthorized reseller.
Products purchased from a non-compliant reseller may NOT qualify for the warranty coverage or product/technical support, or the product may be a counterfeit product.

ESS CCTV is an authorized seller, and the products we sell are 100% genuine products fully covered by their manufacuter warranty.
We sincerely wish our customers to protect themselves from unauthorized resellers.

You can find the list of CNB's unauthorized resellers here on the official website of CNB USA:
CNB's unauthorized resellers
The manufacturers or products with the MAP policy are the following:

Please login for your special sale price!
qty:
Available Options:
Power Supply:

  • 1/3" SONY Super HAD CCD ll
  • High Resolution of 600 TVL (Only B/W)
  • Plate capture up to 35mph (56Km/H)
  • Convenient OSD
  • f = 9.0 ~ 22.0mm Varifocal Lens
  • 20 units IR LED with Max. 30m
  • External Zoom & Focus Adjustable
  • Dual Window Structure (DWS)
  • Second Video Connector / Cable Concealed Bracket
  • Outstanding Durability with IP66

 SPECIFICATION



Model Name
KPC-LP500
Image Device

1/3" SONY Super HAD CCD ll

Scanning System

2 : 1 Interlace

Scanning Frequency

NTSC: 15.734 KHz(H), 59.94 Hz(V) / PAL: 15.625 KHz(H), 50 Hz(V)

H. Resolution

 600 TVL (Only B/W)

Total Pixels

NTSC : 811(H) x 508(V)  /  PAL : 795(H) x 596(V)

Effective Pixels

NTSC : 768(H) x 494(V)  /  PAL : 752(H) x 582(V)

S/N Ratio

More than 50dB (AGC Off)

Min. Illumination

0 Lux ( IR LED On)

Sync. System Internal
Video Output 1.0 Vp-p Composite (75Ω)
Lens

9.0 ~ 22.0mm Varifocal Lens

OSD

Built-in

Freeze time

Off / On (3 / 5 / 10 sec)

Negative Image

On / Off

IR LED

850 nm, 20 ea, up to 30 m (80FT)

Trigger

Sensor Input X 1 (3.3V DC drop to GND)

Shutter Speed

1 / 10,000 sec

IP Rating

IP66 (Weather Proof)

Operating Temperature 14ËšF ~ 122ËšF (-10ËšC ~ +50ËšC)
Storage Temperature -4ËšF ~ 140ËšF (-20ËšC ~ +60ËšC)
Humidity Less than 80%
Power Consumption

DC12V : DC12V ±10% Max. 450 mA
Dual : DC12V ±10% Max. 700 mA / AC24V ±10% Max. 7 W

Dimensions (mm)

82.0Φ x 79.3

Weight

Approx. 900 g

Options

DC12V / AC24V Dual Voltage



 DIMENSIONS
