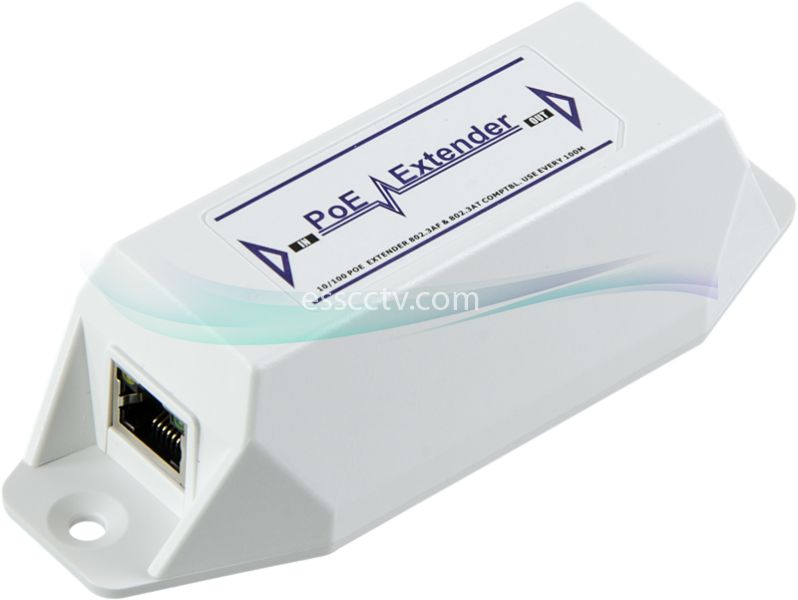

PoE extender - a quality product for PoE network point-to-point up to 500m. Works with PoE standards IEEE802.3af and IEEE802.3at. This device serves as a data switch port that is powered by PoE, and transmits it further on another 100m together with the data. Depending on the amount of power consumption. may use up to 4 extensions in the same chain, thereby increasing transmission distance up to 500m (1 class 802.3af, see table. "Maximum distance")
| No. of channels | 1 |
| Pass Through Data Rates | 10/100 Mbps half / full deplex |
| PoE input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| PoE output | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) Output Power: up to 22W |
| Indicators | Power indicator: PoE enabled Network indicator: Link/Act |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network cables | Shielded category 5 (or higher) |
| Case material | ABS plastic |
| Dimensions | 145mm x 60mm x 40mm |
| Weight | 0.090g |
| Mounting | Wall of shelf |
| Environment | Indoor |
| Environmental Conditions | Operating Ambient Temperature: -40 to 45°C @90%, Non-condensing Storage Temperature: -40 to 70°C @95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC |
| Electromagnetic | FCC Part15, Class B |
