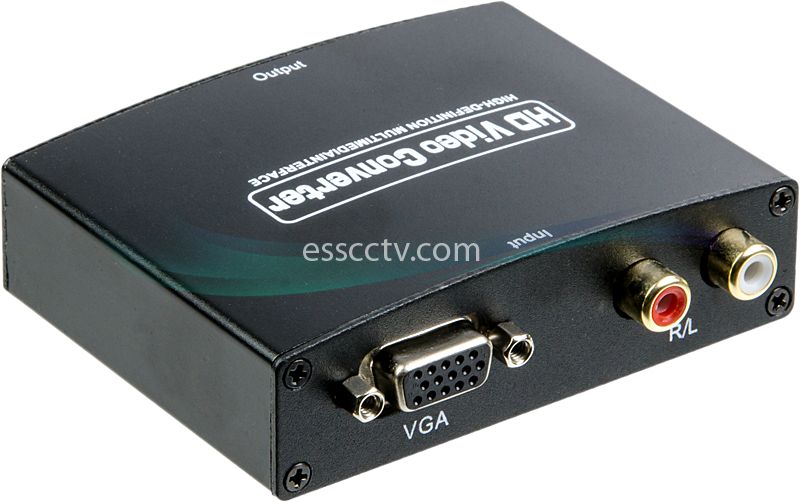

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allow PC users to show their image not only on the PC monitor, but could also on TV, to have a large display. The conversion is along with the R/L audio. Converter offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Maximum Single Link Range | 1600×1200, 1080P |
Output Video | HDMI + HDCP1.0/1.1 |
VGA | 640×480 60Hz 72Hz 75Hz 800×600 60Hz 72Hz 75Hz 1024×768 60Hz 70Hz 75Hz 1280×1024 60Hz 1600×1200 60Hz |
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Frequency | Up to165MHz |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Operating Temperature | 0 to +70°C |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80°C |
Storage Humidity | 5% to 95 % RH (no condensation) |
External Power Supply | DC 5V 1A |
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
