IR 2356 Night-Vision Outdoor Bullet Camera: 56 IR 120 FT, 4 or 6mm Lens
Images are for illustration purpose and may not show the actual product.
Model:
IR 2356
Item #: 230
Manufacturer: Telpix
MSRP:
$89.00
Our Price:
$57.00
(You save: $32.00)
- 1/3” Sharp CCD
- Crystal Clear : 380 (day) / 420 (night) TV (H) lines
- See from a distance in total darkness
- 0.3 Lux at F1.2 / 0 Lux (IR on)
- 56 IR LED cover up to 120 feet
- 12 volts DC Power, 1700mA power recommended
- Weatherproof, ideal for outdoor use
- 4 or 6mm Fixed Lens
- Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)

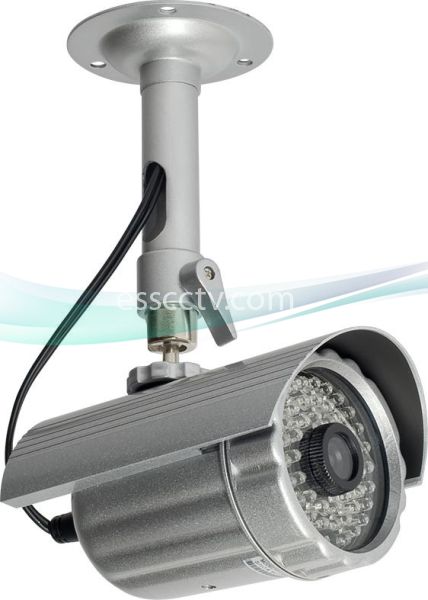

The IR 2356 color infrared bullet camera gives you an outstanding clear color picture during the daytime and a sharp night time image with the 56 high intensity IR LED’s. The advanced 1/3” Sharp CCD produces a 380 TV lines of resolution and with aid of infrared LEDS, you get 0.3 lux low light during the night. The IR range is up to 120 feet. The IR 2356 is best suited for retail shops, banks, residential security and industrial business locations. This camera operates efficiently on 12VDC 1700mA of power or higher. The included sturdy metal mounting bracket makes setup quick and easy.
| 1/3” Sharp Color CCD |
| 537(H) x 505(V) 270K pixels |
| 510(H) x 492(V) 270k Pixels |
| 3.65(H) x 2.73(V) mm |
| 1.0 Vp-p Comp |
| 1/60~1/100,000 sec. |
| 0.3 Lux at F1.20 Lux (IR ON) |
| 380(H) TV Lines (Color)420(H) TV Line (B/W) |
| Internal only |
| ON by default |
| ESC |
| 4 / 6mm Fixed Lens |
| ON / OFF selectable |
| ATW |
| 56 IR LED |
| 120ft. |
| r=0.45 |
| 48dB (AGC off) |
| 14°F ~ 122°F |
| DC 12V / 60 Hz |
| 5W |
| 1700mA (IR On) |
| 2.75”(Ø) x 5”(L) |
| 1.2 lbs |
| Camera mount, Screw 3ea, Instruction Manual |
