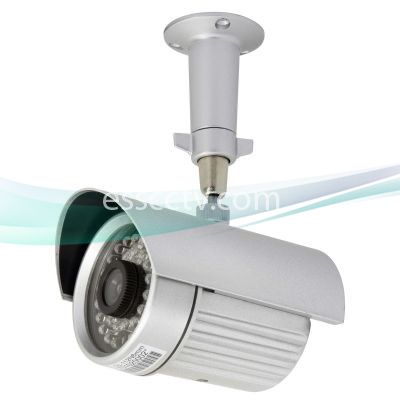

The IR 2335 color infrared bullet camera gives you an outstanding clear color picture during the daytime and a sharp night time image with the 35 high intensity IR LED�s. The advanced 1/3� Sharp CCD produces a 380 TV lines of resolution and with aid of infrared LEDS, you get 0.3 lux low light during the night. The IR range is up to 80 feet. The 6mm lens has a 53� field of view. The IR 2335 is best suited for retail shops, banks, residential security and industrial business locations. This camera operates efficiently on 12VDC 1500mA of power or higher. The included sturdy metal mounting bracket makes setup quick and easy.
Image Pick-up Device | 1/3” Sharp Color CCD |
Picture elements | 537(H) x 505(V) 270K pixels |
Effective picture elements | 510(H) x 492(V) 270k Pixels |
Scanning Area | 3.65(H) x 2.73(V) mm |
Video Output | 1.0 Vp-p Comp |
Electronic Iris | 1/60~1/100,000 sec. |
Minimum Illumination | 0.3 Lux at F1.20 Lux (IR ON) |
Resolution | 380(H) TV Lines (Color)420(H) TV Line (B/W) |
SYNC. System | Internal only |
Backlight Compensation | ON by default |
IRIS MODE | ESC |
Lens | 4 / 6mm Fixed Lens |
AGC | ON / OFF selectable |
White Balance | ATW |
IR LED | 35 IR LED |
Illuminate Distance | 80ft. |
Gamma | r=0.45 |
S/N Ratio | 48dB (AGC off) |
Ambient Temp. | 14°F ~ 122°F |
Power Source | DC 12V / 60 Hz |
Power Consumption | 5W |
Input Current | 1500mA (IR On) |
Dimension | 2.75”(Ø) x 5”(L) |
Weight | 1.2 lbs |
Accessory | Camera mount, Screw 3ea, Instruction Manual |
