> Item #2070

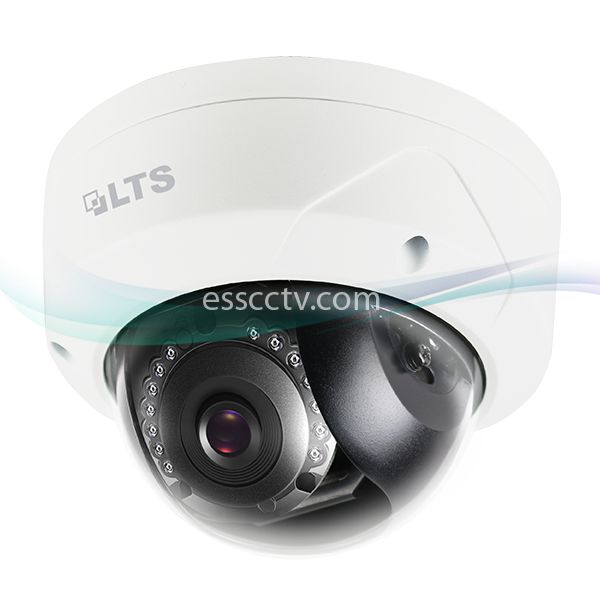

LTS CMIP7422N-28WIFI 2MP IP Outdoor Mini WiFi Dome Camera with 2.8mm Lens & 12 IR LEDs

Images are for illustration purpose and may not show the actual product.

Click to Enlarge

Model: CMIP7422N-28WIFI
Item #: 2070
Manufacturer: LT Security Inc

MSRP: ~~$220.00~~
Our Price:

$153.00

(You save: $67.00)

2.1 MP High Definition

12 IR LED up to 70ft

3D DNR,BLC,DWDR

IP67, Vandal Proof

3-Axis adjustment

Wide FoV

Support Wifi

DC 12V/ PoE

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2,AGC ON),0 Lux withIR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mmï¼ŒAngle of viewï¼š106 °
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	Digital WDR
Angle Adjustment	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°
Compression Standard
Video Compression	H.264 / MJ PEG
H.264 Type	Main Profile
Video Bit Rate	32 Kbps ~ 8 Mbps
Dual Streams	Support
Max. Resolution	1920 × 1080
Frame Rate	60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Setting	Rotate Mode, Saturation, Brightnes s , Contras t, Sharpnes s adjus table by client software or web brows er
BLC	Support, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS),
Alarm Trigger	Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One- key res et, Flash- prevention, dual s tream, mirror, pas sword protection, privacy mas k, watermark, IP addres s fitering, Anonymous acces s
Standard	ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ 45 10M/100M Ethernet port
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset	Yes
Wi-Fi
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	20/40MHz Support
Protocols	802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates	11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range	50 meters *The performance varies based on actual environment
General
Working Temperature /Humidity	"- 22 °F ~ 140 °F (- 30 °C ~ 60 °C) Humidity 95% or les s (non- condens ing)"
Power Supply	DC12V ±10%, PoE (802.3af)
Power Consumption	Max. 5.3W
IR Range	12 IR LED up to 70ft
Weather Proof Ratings	IP67
Impact Protection	IEC60068-2-75Eh, 20J; EN50102, up to IK10
Dimensions	Φ4.4"×3.2"(Φ111×82.0mm)
Weight	1.1 lbs (500g)
